Name: High Capacity Lithium Ion Battery Pack 24V/10Ah Electric Bicycle Applied With Aluminum Casing
Brand: Guangzhou Serui Battery Technology Co,.Ltd
SKU: 24V 10AH PACK
Price: 1 USD
Availability: InStock

Home Products Lithium Ion Battery

High Capacity Lithium Ion Battery Pack 24V/10Ah Electric Bicycle Applied With Aluminum Casing

Product Details:

Place of Origin:	CHINA
Brand Name:	SER
Certification:	NO
Model Number:	24V 10AH PACK

Payment & Shipping Terms:

Minimum Order Quantity:	500PACKS
Price:	1USD/PC
Packaging Details:	STANDARD
Delivery Time:	25DAYS
Supply Ability:	50000PACKS PER MONTH

Contact Now

Detailed Product Description

Voltage:	24V	Capacity:	10Ah
Application:	E-bike	Cycle Life:	Above 800
OEM:	YES
Highlight:	lithium ion rechargeable cell , li ion battery cell

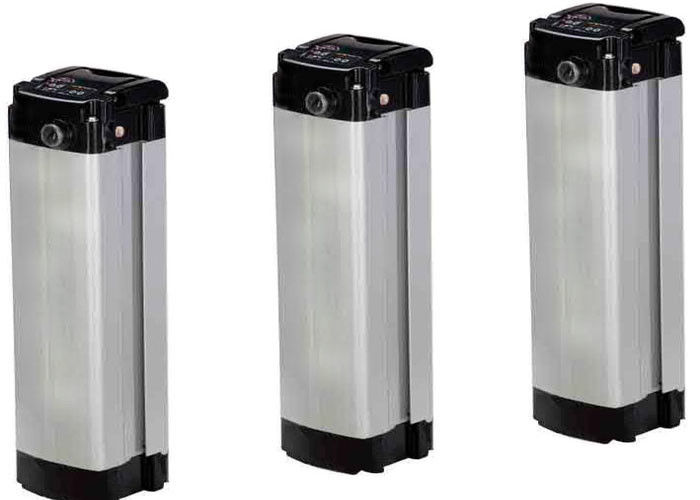

Aluminum Casing 24V Li-ion Battery Pack

※ Technical Datasheet:
24V/10Ah,24V/9Ah,24V/8Ah Li-ion Battery Pack With Aluminum Casing For Electric Bicycle

Basic Characteristics
Battery Pack Model		24V/10Ah, 24V/9Ah, 24V/8Ah
Material Chemistry		LiMn2O4
Norminal Voltage		25.9V
Norminal Capacity		10Ah, 9Ah, 8Ah
Internal Impedance		≤90mΩ
Max Charge Voltage		29.75V
Cut off Voltage		21.0V
Charge Mode		CC/CV
Max Charge Current		4A
Max. Discharge Current		20A (Constant)
Size for Single Cell		21mm×70mm×105mm
Battery Pack Size
Capacity at 1C Discharge		≥8Ah, 8.5Ah, 9.5Ah
Battery Pack Weight		About 3.2Kg
Ambient Temperature	Charge	0~45℃
	Discharge	-20℃~55℃
Storage Temperature		-20～55℃ (50% capacity, full charged/discharged every 3 months)
Cycle Life		800 times(Cycle@RT 60%,100%DoD)
Test Standard		UL, ROHS, UN38.3, CE, National Standard
