LS33600 / ER34615 D size 3.6V 19000mAh R20 Lithium primary Li-SOCI2 Battery

Certification
Good quality Lithium MNO2 Battery for sales
Good quality Lithium MNO2 Battery for sales
The battery quality is very good! We have been SER’s customer for more than 4 years. Your good service and quality is too good.

—— Jay

I'm Online Chat Now

LS33600 / ER34615 D size 3.6V 19000mAh R20 Lithium primary Li-SOCI2 Battery

China LS33600 / ER34615 D size 3.6V 19000mAh R20 Lithium primary Li-SOCI2 Battery supplier
LS33600 / ER34615 D size 3.6V 19000mAh R20 Lithium primary Li-SOCI2 Battery supplier LS33600 / ER34615 D size 3.6V 19000mAh R20 Lithium primary Li-SOCI2 Battery supplier LS33600 / ER34615 D size 3.6V 19000mAh R20 Lithium primary Li-SOCI2 Battery supplier

Large Image :  LS33600 / ER34615 D size 3.6V 19000mAh R20 Lithium primary Li-SOCI2 Battery

Product Details:

Place of Origin: CHINA
Brand Name: SER
Certification: CE ROSH
Model Number: ER34615

Payment & Shipping Terms:

Minimum Order Quantity: 500PCS
Price: Negotiable
Packaging Details: standard/ customise
Delivery Time: 5-8 work days
Supply Ability: 100,000pcs per day
Contact Now
Detailed Product Description
Battery Type: D Size Voltage: 3.6V
Capacity: 19,000mAh Chemical System: LiSocl2
Size: 33.6mm*61.5mm Shelf Life: 10 Years
Application1: Meter Application2: Alarm
Application3: Backup Power Application4: Medical Instruments

LS33600 / ER34615 D size 3.6V 19000mAh R20 Lithium primary Li-SOCI2 Battery





Technical specifications:



Battery Technology Lithium thionyl chloride / LiSOCL2
Battery structure High capacity type
Nominal Voltage 3.6V
Nominal Capacity 19000mAh
Open circuit voltage 3.66V (at +20°C)
Cut off Voltage 2.0V
Max. Constant Current 230mA
Max. Pulse Current 400mA
Operating Temperature -55°C~+85°C/-67°F~+185°F
Storage Life ≥10 years
Self – Discharge Rate: <1% per year
External Diameter (Max) 33.6mm/1.32inch
External Height (Max) 61.5mm/2.42inch
Weights 110g



































Features


1.) Excellent shelf life (10 years at room temperature);
2.) Low self-discharge (1% or less per year);
3.) Suited for long-term use with low current;
4.) Best suit for low current discharge;
5.) Wide temperature range from -55℃ to +85℃;
6.) Bobbin-type or flat cells.



Application


The battery have wide applications:

Utility water/ Gas Meter, Automatic Meter Reading;

Medical Equipment, CMOS memory backup, Tracking Systems,Remote Monitory Systems;

Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices, Electronic Toll Tags;

Scientific Instruments, Portable Communication Equipment, Military Radio Stations;

and other electric powered devices requiring small size, high capacity batteries.

LS33600 / ER34615 D size 3.6V 19000mAh R20 Lithium primary Li-SOCI2 Battery


Packaging & Shipping



Packing:

Tray bulk, Blister card, PVC shrink, Gift-Box, Nude packing, OEM packing, etc.



Shipping:

Leadtime is 3-20 working days for normal orders.



Pictures:

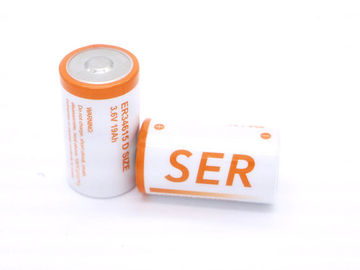

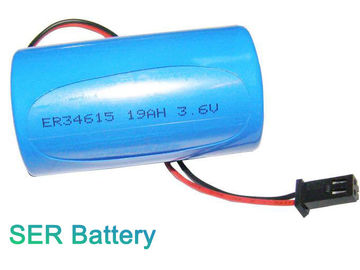

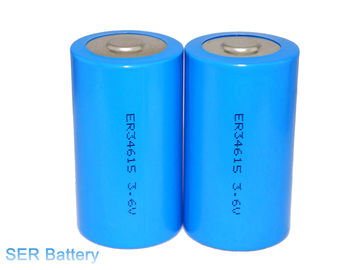

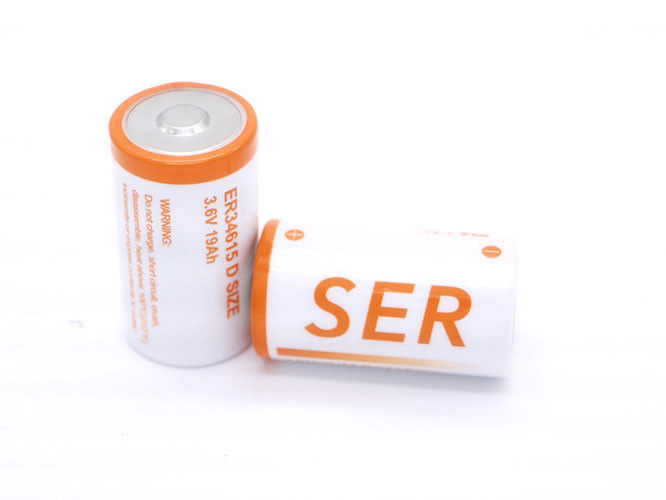

LS33600 / ER34615 D size 3.6V 19000mAh R20 Lithium primary Li-SOCI2 Battery



LS33600 / ER34615 D size 3.6V 19000mAh R20 Lithium primary Li-SOCI2 Battery



LS33600 / ER34615 D size 3.6V 19000mAh R20 Lithium primary Li-SOCI2 Battery
We can add the Pin, wire and connector on the battery according to requirement



Why Choose us?



Company Advantages:


We have been continously developing new products to meet requirements of different customers and applications since 1980. what's more, performance of batteries such as safety, energy density, temperature characteristics, discharge platform, resistance, cycle life is always improving.
Pursuing a business concept of “Quality First”, our assembly lines are certified by the Chinese military and ISO9001 quality system. We also have a fully equipped environment and reliability testing center to assure our products meeting military specifications.



High quality batteries:


Our batteries are in enough capacity, and lower in RI. Before shipment, we will 100% inspect and ensure battery quality well approved by our clients.


Better service:
Professional and experienced engineers can provide satisfied perfect solutions to customers. New designs can lead to actual products within 15days.A professional,dedicated and well known technical& marketing team with the ability to identify,support and serve our customers with diamante service.

We always offer customers with highest quality, reasonable price and intimate after-service to support them on marketing developing. It is our wish to obtain muti-benefit with global users through OEM and ODM business.
