Home ProductsLi SOCL2 Battery

Size 2/3 A Dry Cell Lithium Battery ER17335M 3.6V High Power With Solder Pins

Size 2/3 A Dry Cell Lithium Battery ER17335M 3.6V High Power With Solder Pins

    • Size 2/3 A Dry Cell Lithium Battery ER17335M 3.6V High Power With Solder Pins
    • Size 2/3 A Dry Cell Lithium Battery ER17335M 3.6V High Power With Solder Pins
    • Size 2/3 A Dry Cell Lithium Battery ER17335M 3.6V High Power With Solder Pins
  • Size 2/3 A Dry Cell Lithium Battery ER17335M 3.6V High Power With Solder Pins

    Product Details:

    Place of Origin: CHINA
    Brand Name: SER or OEM
    Certification: CE ROSH
    Model Number: ER17335M

    Payment & Shipping Terms:

    Minimum Order Quantity: 500PCS
    Price: Negotiable
    Packaging Details: standard/ customise
    Delivery Time: 5-8 work days
    Supply Ability: 100,000pcs per day
    Contact Now
    Detailed Product Description
    Battery Type: A Size Voltage: 3.6V
    Capacity: 1,900mAh Chemical System: LiSocl2
    Size: 17.5mm*33.5mm Shelf Life: 10 Years
    Application1: Smart Meters Application2: Wireless Communication System
    Application3: Solar Battery Meter Application4: Smoke Detector
    Shape: Cyclindrical

    Lithium Dry Cell Battery Size 2/3 A ER17335M 3.6V High Power LiSOCl2 Battery with Solder Pins for Smoke Detector





    Technical specifications:



    Battery Technology Lithium thionyl chloride / LiSOCL2
    Battery structure High power type
    Nominal Voltage 3.6V
    Nominal Capacity 1900mAh
    Open circuit voltage 3.66V (at +20°C)
    Cut off Voltage 2.0V
    Max. Constant Current 500mA
    Max. Pulse Current 1000mA
    Operating Temperature -55°C~+85°C/-67°F~+185°F
    Storage Life ≥10 years
    Self – Discharge Rate: <1% per year
    External Diameter (Max) 17.5mm
    External Height (Max) 33.5mm
    Weights 21g



































    Features



    1.High continuous discharge current and current pulses.
    2.High energy density, 430Wh/Kg.
    3.Open circuit voltage above 3.65V for single cell.
    4.Wide range of operating temperature(-55°C~+85°C).
    5.Stable voltage and current over 95% of the cell capacity is discharged at high plateau voltage.
    6.Long operating time (over 8 years) for continuous low current discharge with high current pulses.
    7.Low self-discharge rate (less than 1% per year) and long storage life (over 10 year under normal room temperature).



    Application

    The battery have wide applications:

    Utility water/ Gas Meter, Automatic Meter Reading;

    Medical Equipment, CMOS memory backup, Tracking Systems,Remote Monitory Systems;

    Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices, Electronic Toll Tags;

    Scientific Instruments, Portable Communication Equipment, Military Radio Stations;

    and other electric powered devices requiring small size, high power batteries.

    Size 2/3 A Dry Cell Lithium Battery ER17335M 3.6V High Power With Solder Pins


    Packaging & Shipping



    Packing:

    Tray bulk, Blister card, PVC shrink, Gift-Box, Nude packing, OEM packing, etc.



    Shipping:

    Leadtime is 3-20 working days for normal orders.



    Pictures:

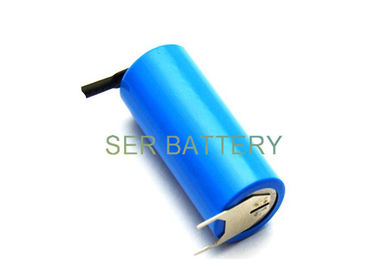

    Lithium Dry Cell Battery Size 2/3 A ER17335M 3.6V High Power LiSOCl2 Battery with Solder Pins for Smoke Detector

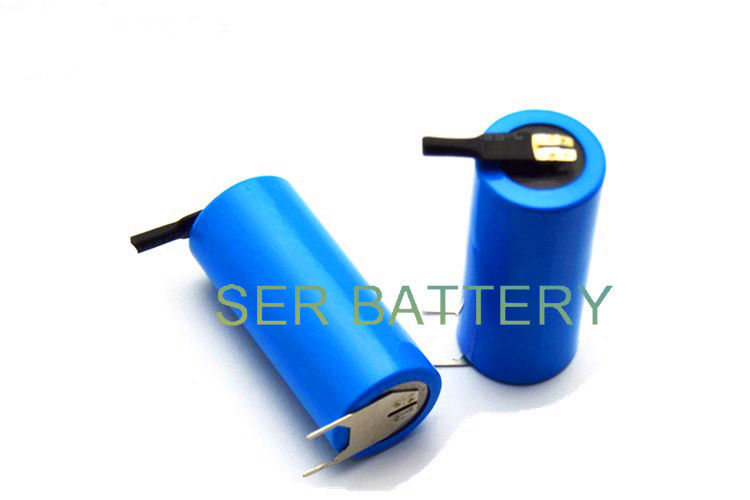

    Size 2/3 A Dry Cell Lithium Battery ER17335M 3.6V High Power With Solder Pins


    We can add the Pin, wire and connector on the battery according to requirement

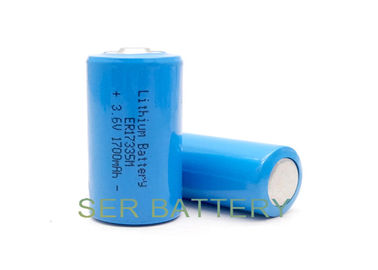

    Size 2/3 A Dry Cell Lithium Battery ER17335M 3.6V High Power With Solder Pins



    Why Choose us?



    Company Advantages:


    We have been continously developing new products to meet requirements of different customers and applications since 1980. what's more, performance of batteries such as safety, energy density, temperature characteristics, discharge platform, resistance, cycle life is always improving.
    Pursuing a business concept of “Quality First”, our assembly lines are certified by the Chinese military and ISO9001 quality system. We also have a fully equipped environment and reliability testing center to assure our products meeting military specifications.



    High quality batteries:


    Our batteries are in enough capacity, and lower in RI. Before shipment, we will 100% inspect and ensure battery quality well approved by our clients.


    Better service:
    Professional and experienced engineers can provide satisfied perfect solutions to customers. New designs can lead to actual products within 15days.A professional,dedicated and well known technical& marketing team with the ability to identify,support and serve our customers with diamante service.

    We always offer customers with highest quality, reasonable price and intimate after-service to support them on marketing developing. It is our wish to obtain muti-benefit with global users through OEM and ODM business.



    Our Certifications:

    Size 2/3 A Dry Cell Lithium Battery ER17335M 3.6V High Power With Solder Pins

    Our Workshop

    Size 2/3 A Dry Cell Lithium Battery ER17335M 3.6V High Power With Solder Pins



    Look at those pictures. To make sure the producing environment is total dry, we introduced foreign technology and machine. This drying system comes from Denmark; it can generate 54500CBM dry air per hour.

    It owns modern produce equipment and rater complete necessary facilities.



    Meanwhile we have many automatic machines; this is our automatic voltage test machine. Those modern production equipments laid a solid foundation for producing high-quality products.
