Lisocl2 High Current Battery , 3.6V ER34615 High Rate Discharge Battery HPC1550 Hybrid Pulse Capacitor

Lisocl2 High Current Battery , 3.6V ER34615 High Rate Discharge Battery HPC1550 Hybrid Pulse Capacitor

    • Lisocl2 High Current Battery , 3.6V ER34615 High Rate Discharge Battery HPC1550 Hybrid Pulse Capacitor
    • Lisocl2 High Current Battery , 3.6V ER34615 High Rate Discharge Battery HPC1550 Hybrid Pulse Capacitor
    • Lisocl2 High Current Battery , 3.6V ER34615 High Rate Discharge Battery HPC1550 Hybrid Pulse Capacitor
  • Lisocl2 High Current Battery , 3.6V ER34615 High Rate Discharge Battery HPC1550 Hybrid Pulse Capacitor

    Product Details:

    Place of Origin: CHINA
    Brand Name: SER or OEM
    Certification: CE ROSH
    Model Number: ER34615+HPC1550

    Payment & Shipping Terms:

    Minimum Order Quantity: 500PCS
    Price: Negotiable
    Packaging Details: standard/ customise
    Delivery Time: 5-8 work days
    Supply Ability: 100,000pcs per day
    Contact Now
    Detailed Product Description
    Battery Type: DD Voltage: 3.6V
    Capacity: 38000mAh Chemical System: LiSocl2
    Size: 34.2mm*50.5mm Shelf Life: 10 Years
    Application1: Smart Meters Application2: Memory Back-up
    Application3: TPMS Battery Application4: Digital Control Machine
    Shape: Cyclindrical

    3.6V ER34615 Lisocl2 battery with HPC1550 Hybrid Pulse Capacitor for high discharge current application





    Technical specifications:



    System Hybrid Pulse Capacitor
    Version HPC1550
    Nominal voltage 4V
    Nominal capacity 840AS @ 3.67V
    1290AS @ 3.90V
    1500AS @ 4.10V
    Nominal discharge current 250mA
    Max.continuous discharge current 2000mA
    Pulse current capability 5000mA
    Discharge end voltage 2.5V
    Max.charge voltage 4.1V
    Nominal charge current 100mA
    Temperature range -40℃~+85℃
    Cell impedance @ 1kHz,RT max. 100mΩ
    Nominal energy max. 1.0Wh
    Length 50.0±0.3mm
    Diameter max. 15.1mm
    Weight 20.0g



    Shelf life at different storage temperature to 80% of initial capacity
    Temperature HPC HPC in IOT battey
    RT 3 years 10 years
    60℃ 4 weeks 7 years
    80℃ 1 weeks At least 1 years



    Features



     Li-SOCl₂ prismatic and coin batteries
    · High and stable operating voltage
    · Wide Operating Temperature Range



    Application

    The battery have wide applications:

    Utility water/ Gas Meter, Automatic Meter Reading;

    Medical Equipment, CMOS memory backup, Tracking Systems,Remote Monitory Systems;

    Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices, Electronic Toll Tags;

    Scientific Instruments, Portable Communication Equipment, Military Radio Stations;

    and other electric powered devices requiring small size, high capacity batteries.

    Lisocl2 High Current Battery , 3.6V ER34615 High Rate Discharge Battery HPC1550 Hybrid Pulse Capacitor


    Packaging & Shipping



    Packing:

    Tray bulk, Blister card, PVC shrink, Gift-Box, Nude packing, OEM packing, etc.



    Shipping:

    Leadtime is 3-20 working days for normal orders.



    Safety:
    Short circuit at 22℃,55℃ and 85℃
    Temperature test up to 150℃
    Crush
    Impact
    Nail penetration
    Over charge up to 0.5A ,12V
    Over discharge (300%) up to 2A

    Warning:
    Fire,explosion, and severe burn hazards.
    do not disassemble, heat above 100℃,
    short circuit, incinerate or expose contents to water.
    Do not charge above 4.1V



    Pictures:

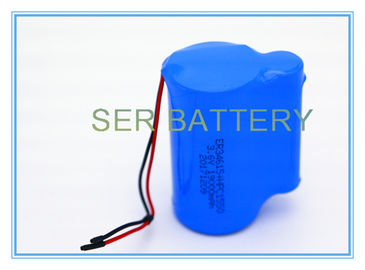

    3.6V ER34615 Lisocl2 battery with HPC1550 Hybrid Pulse Capacitor for high discharge current application

    Lisocl2 High Current Battery , 3.6V ER34615 High Rate Discharge Battery HPC1550 Hybrid Pulse Capacitor


    We can add the Pin, wire and connector on the battery according to requirement

    Lisocl2 High Current Battery , 3.6V ER34615 High Rate Discharge Battery HPC1550 Hybrid Pulse Capacitor



    Why Choose us?



    Company Advantages:


    We have been continously developing new products to meet requirements of different customers and applications since 1980. what's more, performance of batteries such as safety, energy density, temperature characteristics, discharge platform, resistance, cycle life is always improving.
    Pursuing a business concept of “Quality First”, our assembly lines are certified by the Chinese military and ISO9001 quality system. We also have a fully equipped environment and reliability testing center to assure our products meeting military specifications.



    High quality batteries:


    Our batteries are in enough capacity, and lower in RI. Before shipment, we will 100% inspect and ensure battery quality well approved by our clients.


    Better service:
    Professional and experienced engineers can provide satisfied perfect solutions to customers. New designs can lead to actual products within 15days.A professional,dedicated and well known technical& marketing team with the ability to identify,support and serve our customers with diamante service.

    We always offer customers with highest quality, reasonable price and intimate after-service to support them on marketing developing. It is our wish to obtain muti-benefit with global users through OEM and ODM business.



    Our Certifications:

    Lisocl2 High Current Battery , 3.6V ER34615 High Rate Discharge Battery HPC1550 Hybrid Pulse Capacitor

    Our Workshop

    Lisocl2 High Current Battery , 3.6V ER34615 High Rate Discharge Battery HPC1550 Hybrid Pulse Capacitor



    Look at those pictures. To make sure the producing environment is total dry, we introduced foreign technology and machine. This drying system comes from Denmark; it can generate 54500CBM dry air per hour.

    It owns modern produce equipment and rater complete necessary facilities.



    Meanwhile we have many automatic machines; this is our automatic voltage test machine. Those modern production equipments laid a solid foundation for producing high-quality products.
