Cylindrical High Current Battery ER18505 3.6V Li-SOCl2 Cell HPC1520 Ultracapacitor

China Cylindrical High Current Battery ER18505 3.6V Li-SOCl2 Cell HPC1520 Ultracapacitor supplier
Cylindrical High Current Battery ER18505 3.6V Li-SOCl2 Cell HPC1520 Ultracapacitor supplier Cylindrical High Current Battery ER18505 3.6V Li-SOCl2 Cell HPC1520 Ultracapacitor supplier Cylindrical High Current Battery ER18505 3.6V Li-SOCl2 Cell HPC1520 Ultracapacitor supplier

Large Image :  Cylindrical High Current Battery ER18505 3.6V Li-SOCl2 Cell HPC1520 Ultracapacitor

Product Details:

Place of Origin: CHINA
Brand Name: SER or OEM
Certification: CE ROSH
Model Number: ER18505+HPC1520

Payment & Shipping Terms:

Minimum Order Quantity: 500PCS
Price: Negotiable
Packaging Details: standard/ customise
Delivery Time: 5-8 work days
Supply Ability: 100,000pcs per day
Contact Now
Detailed Product Description
Battery Type: DD Voltage: 3.6V
Capacity: 3800mAh Chemical System: LiSocl2
Size: 34mm*50.5mm Shelf Life: 10 Years
Application1: Smart Meters Application2: Memory Back-up
Application3: TPMS Battery Application4: Digital Control Machine
Shape: Cyclindrical

High current power ER18505 3.6V Li-SOCl2 Battery with cylindricalSuperCapacitor HPC1520 ultracapacitor





Technical specifications:

Performance Data
(For batteries stored at RT for one year or less)
System Hybrid Pulse Capacitor
Version HPC1520
Nominal voltage 4V
Nominal capacity 140AS @ 3.67V
260AS @ 3.90V
325AS @ 4.10V
Nominal discharge current 50mA
Max.continuous discharge current 500mA
Pulse current capability 2000mA
Discharge end voltage 2.5V
Max.charge voltage 4.1V
Nominal charge current 20mA
Temperature range -40℃~+85℃
Cell impedance @ 1kHz,RT max. 250mΩ
Nominal energy max. 0.3Wh
Length max. 20.0mm
Diameter max. 15.1mm
Weight 9.0g



Shelf life at different storage temperature to 80% of initial capacity
Temperature HPC HPC in IOT battey
RT 3 years 10 years
60℃ 4 weeks 7 years
80℃ 1 weeks At least 1 years



Features



 Li-SOCl₂ prismatic and coin batteries
· High and stable operating voltage
· Wide Operating Temperature Range



Application

The battery have wide applications:

Utility water/ Gas Meter, Automatic Meter Reading;

Medical Equipment, CMOS memory backup, Tracking Systems,Remote Monitory Systems;

Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices, Electronic Toll Tags;

Scientific Instruments, Portable Communication Equipment, Military Radio Stations;

and other electric powered devices requiring small size, high capacity batteries.

Cylindrical High Current Battery ER18505 3.6V Li-SOCl2 Cell HPC1520 Ultracapacitor


Packaging & Shipping



Packing:

Tray bulk, Blister card, PVC shrink, Gift-Box, Nude packing, OEM packing, etc.



Shipping:

Leadtime is 3-20 working days for normal orders.



Safety:
Short circuit at 22℃,55℃ and 85℃
Temperature test up to 150℃
Crush
Impact
Nail penetration
Over charge up to 0.5A ,12V
Over discharge (300%) up to 2A

Warning:
Fire,explosion, and severe burn hazards.
do not disassemble, heat above 100℃,
short circuit, incinerate or expose contents to water.
Do not charge above 4.1V



Pictures:

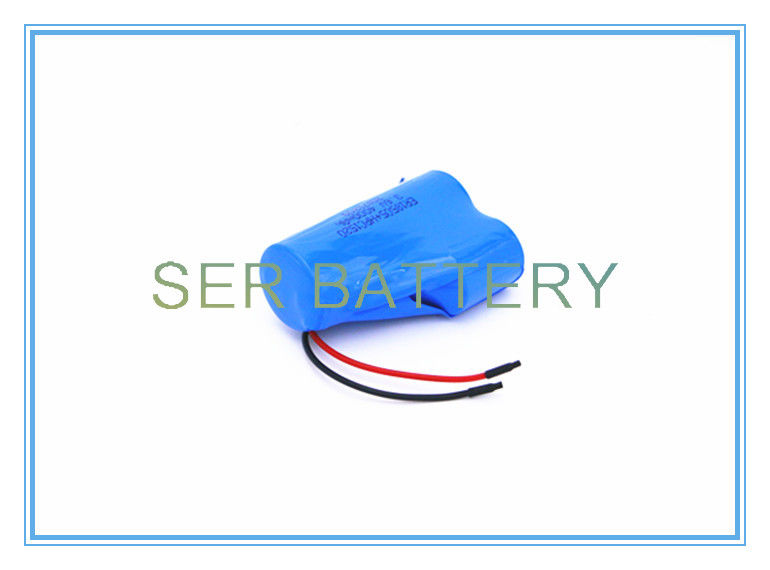

High current power ER18505 3.6V Li-SOCl2 Battery with cylindricalSuperCapacitor HPC1520 ultracapacitor

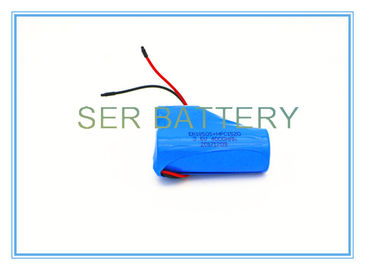

Cylindrical High Current Battery ER18505 3.6V Li-SOCl2 Cell HPC1520 Ultracapacitor

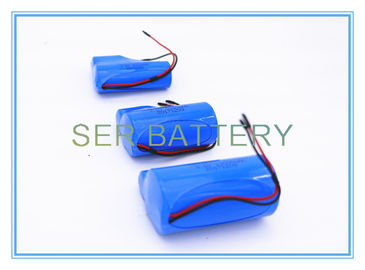

We can add the Pin, wire and connector on the battery according to requirement

Cylindrical High Current Battery ER18505 3.6V Li-SOCl2 Cell HPC1520 Ultracapacitor



Why Choose us?



Company Advantages:


We have been continously developing new products to meet requirements of different customers and applications since 1980. what's more, performance of batteries such as safety, energy density, temperature characteristics, discharge platform, resistance, cycle life is always improving.
Pursuing a business concept of “Quality First”, our assembly lines are certified by the Chinese military and ISO9001 quality system. We also have a fully equipped environment and reliability testing center to assure our products meeting military specifications.



High quality batteries:


Our batteries are in enough capacity, and lower in RI. Before shipment, we will 100% inspect and ensure battery quality well approved by our clients.


Better service:
Professional and experienced engineers can provide satisfied perfect solutions to customers. New designs can lead to actual products within 15days.A professional,dedicated and well known technical& marketing team with the ability to identify,support and serve our customers with diamante service.

We always offer customers with highest quality, reasonable price and intimate after-service to support them on marketing developing. It is our wish to obtain muti-benefit with global users through OEM and ODM business.



Our Certifications:

Cylindrical High Current Battery ER18505 3.6V Li-SOCl2 Cell HPC1520 Ultracapacitor

Our Workshop

Cylindrical High Current Battery ER18505 3.6V Li-SOCl2 Cell HPC1520 Ultracapacitor



Look at those pictures. To make sure the producing environment is total dry, we introduced foreign technology and machine. This drying system comes from Denmark; it can generate 54500CBM dry air per hour.

It owns modern produce equipment and rater complete necessary facilities.



Meanwhile we have many automatic machines; this is our automatic voltage test machine. Those modern production equipments laid a solid foundation for producing high-quality products.
