High Capacity Ultra Thin Battery LiMNO2 CP603956 3200mAh 3.0 Volt For Smart Card

Certification
Good quality Lithium MNO2 Battery for sales
Good quality Lithium MNO2 Battery for sales
The battery quality is very good! We have been SER’s customer for more than 4 years. Your good service and quality is too good.

—— Jay

I'm Online Chat Now

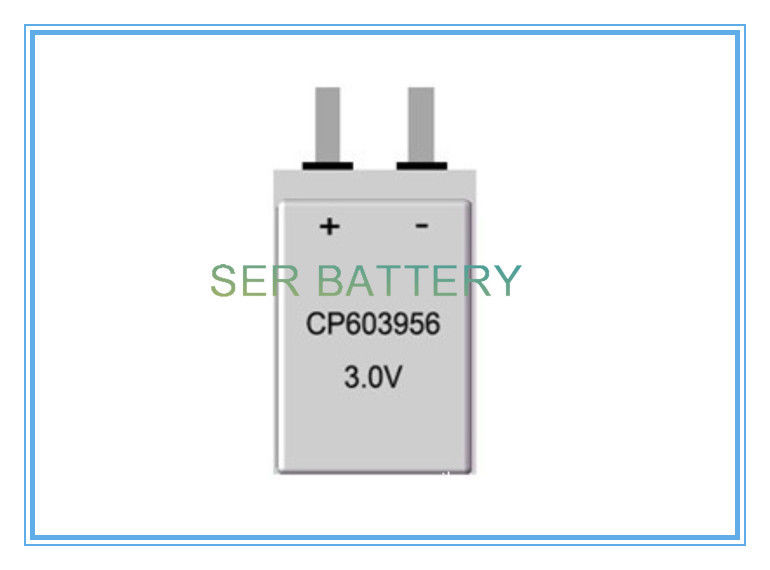

High Capacity Ultra Thin Battery LiMNO2 CP603956 3200mAh 3.0 Volt For Smart Card

China High Capacity Ultra Thin Battery LiMNO2 CP603956 3200mAh 3.0 Volt For Smart Card supplier
High Capacity Ultra Thin Battery LiMNO2 CP603956 3200mAh 3.0 Volt For Smart Card supplier High Capacity Ultra Thin Battery LiMNO2 CP603956 3200mAh 3.0 Volt For Smart Card supplier High Capacity Ultra Thin Battery LiMNO2 CP603956 3200mAh 3.0 Volt For Smart Card supplier

Large Image :  High Capacity Ultra Thin Battery LiMNO2 CP603956 3200mAh 3.0 Volt For Smart Card

Product Details:

Place of Origin: CHINA
Brand Name: SER or OEM
Certification: CE ROSH
Model Number: 603956

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: standard/ customise
Delivery Time: 5-8 work days
Supply Ability: 500,000pcs per month
Contact Now
Detailed Product Description
Battery Shape: Prismatic Voltage: 3.0V
Capacity: 3200mAh Chemical System: Li-MnO2
Size: 6.2mm*40mm*57mm Shelf Life: 10 Years
Application1: Room Key Card Application2: Smart Tag
Application3: Wearable Electrical Device Application4: Laser Sight
Application5: IOT Sensors Application6: RFID Lock
Application7: Track Alarm

High capacity LiMNO2 soft package thin film battery CP603956 for smart card



Technical specifications:



Battery Technology Lithium Manganese Dioxide Battery / LiMNO2
Battery structure High capacity type
Nominal Voltage 3.0V
Nominal Capacity 3200mAh
Open circuit voltage 3.0V (at +20°C)
Cut off Voltage 2.0V
Max. Constant Current 1500mA
Max. Pulse Current 2000mA
Operating Temperature -40°C~+60°C
Storage Life 10 years
Storage Condition Temperature ≤ 30℃ Humidity ≤ 75%RH
Dimension (Max) 6.2*40*57mm
Weights 25g



































Features



1. Totally safe, no explosion at all, be able to bear cruel tests without any protection such as short circuit, puncturing, etc.
2. Totally thin.Thin thickness. 0.4mm to 8mm.Dimensions can be customized according to different demands, short product development period, meeting customers’ varieties of personalized needs.
3. 8 years' running time at low discharge current,the battery self-discharge less than 2% per year at room temperature
4. Light weight and high Energy Density.The specific energy density of each battery is 356Wh/kg, more than 50% higher than steel shell lithium battery under the condition of the same weight
5. Wide Operating Temperature Range, the battery with a strong adaptability to temperature can be in work between -40℃ ~ +60℃
6. Without voltage passivation, no activation necessary after long time storage, install-and-use immediately, free of maintenance



Application

The battery have wide applications:

Wireless telecommunication devices and wearable electrical device;and RFID products,RFID lock, road toll transponder, IC cards,Room key card,Smart tag,track alarm, etc; and
Smoke detectors,Laser Sight,IOT sensors, security alarms, seismometers, locking system, monitoring system, etc.

High Capacity Ultra Thin Battery LiMNO2 CP603956 3200mAh 3.0 Volt For Smart Card


Packaging & Shipping



Packing:

Tray bulk, Blister card, PVC shrink, Gift-Box, Nude packing, OEM packing, etc.



Shipping:

Leadtime is 3-20 working days for normal orders.



Pictures:

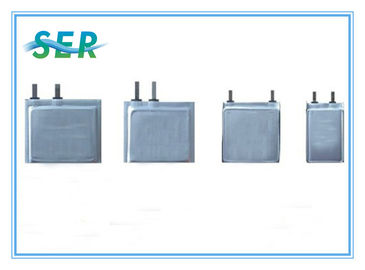

High capacity LiMNO2 soft package thin film battery CP603956 for smart card

High Capacity Ultra Thin Battery LiMNO2 CP603956 3200mAh 3.0 Volt For Smart Card


We can add the Pin, wire and connector on the battery according to requirement

High Capacity Ultra Thin Battery LiMNO2 CP603956 3200mAh 3.0 Volt For Smart Card



Why Choose us?



Company Advantages:


We have been continously developing new products to meet requirements of different customers and applications since 1980. what's more, performance of batteries such as safety, energy density, temperature characteristics, discharge platform, resistance, cycle life is always improving.
Pursuing a business concept of “Quality First”, our assembly lines are certified by the Chinese military and ISO9001 quality system. We also have a fully equipped environment and reliability testing center to assure our products meeting military specifications.



High quality batteries:


Our batteries are in enough capacity, and lower in RI. Before shipment, we will 100% inspect and ensure battery quality well approved by our clients.


Better service:
Professional and experienced engineers can provide satisfied perfect solutions to customers. New designs can lead to actual products within 15days.A professional,dedicated and well known technical& marketing team with the ability to identify,support and serve our customers with diamante service.

We always offer customers with highest quality, reasonable price and intimate after-service to support them on marketing developing. It is our wish to obtain muti-benefit with global users through OEM and ODM business.



Our Certifications:

High Capacity Ultra Thin Battery LiMNO2 CP603956 3200mAh 3.0 Volt For Smart Card

Our Workshop

High Capacity Ultra Thin Battery LiMNO2 CP603956 3200mAh 3.0 Volt For Smart Card



Look at those pictures. To make sure the producing environment is total dry, we introduced foreign technology and machine. This drying system comes from Denmark; it can generate 54500CBM dry air per hour.

It owns modern produce equipment and rater complete necessary facilities.



Meanwhile we have many automatic machines; this is our automatic voltage test machine. Those modern production equipments laid a solid foundation for producing high-quality products.



High Capacity Ultra Thin Battery LiMNO2 CP603956 3200mAh 3.0 Volt For Smart Card

We participate in a variety of trade fairs every year.On Electronics Show we discuss with customers about our products and help them solve questions face to face.We have established contacts with many potential buyers from other places as America,Australia, Belgium, Israel,Germany,the Netherlands, Canada etc.
