ER2/3A High Temperature Battery ER17335S-150°C Li-SOCl2 Battery For Container GPS Tracker17335S,ER17335S-150°C,high temperature battery ER17335,high temperature battery,2/3A High Temperature battery,Li-SOCl2 battery,container GPS tracker battery

Recommended battery model parameters:

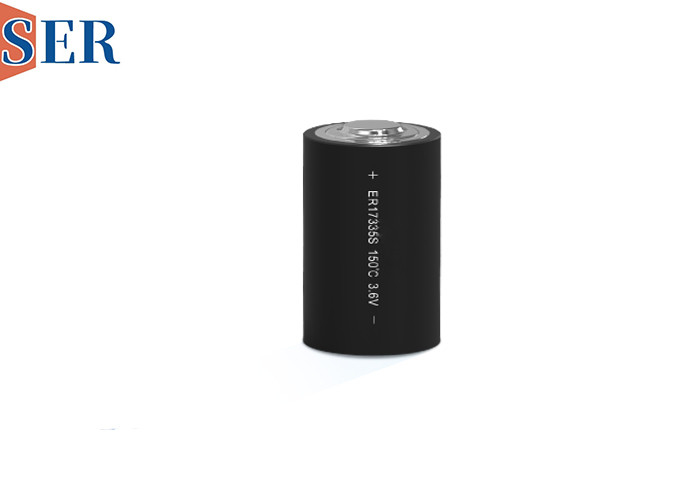

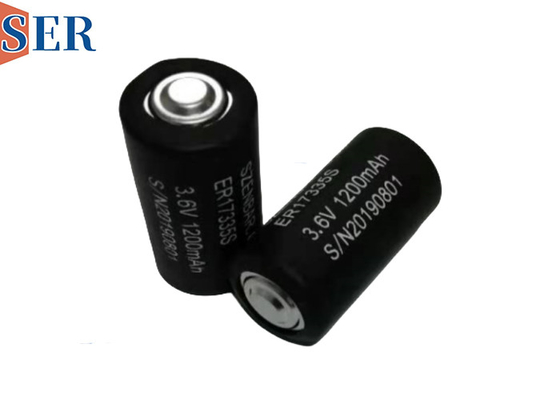

Battery model: ER17335S LiSOCL2 battery-150°C

Battery brand: SER

Battery performance index

1. Battery capacity: (23±2℃, 50mA/2.0V) 1200mAh

2. Open circuit voltage: ≥3.64V

3. Chemical Composition: Li-SOCl2

4. Continuous working currents: 100mA

5. Large pulse working current: 150mA

6. Operating temperature range: -55~+165℃

7. Battery storage life: 10 years

(Storange: clean, below +20℃, dry and ventilated.)

8. Shelf Life: 10years (not printed on battery)

Available Terminations S:Standard Terminations Special Termination are aviable upon request T: Solder Tabs P:Axial Pins

1. Super high temperature performance

Safety valve design and material selection are exquisite, safe and reliable, and make you worry-free on the explosion risk.

Safety, reliability and performance at high temperatures up to 150 °C.

Our company's unique special production process original high temperature lithium thionyl chloride battery can work in the environment of 165 ℃.

2. Small self-discharge:

The self-discharge rate of the high temperature Battery LiSOCL2 primary battery ER26500S is less than 1% at room temperature, and the storage period can reach 10 years in an environment below 35 °C. which will make sure the battery have longer storage life, according to Long-term production inspection and customer use tracking, the life span can reach 10 to 15 years.

3. High capacity

Stable high operating voltage and high capacitance; High energy density,high stable current.

In the field of battery technology, high energy density battery materials can store more energy in a limited volume or mass, thereby increasing the capacity and energy density of the battery.

4. Safety

Safety value design and material selection are exquisite, safe and reliable, and make you worry-free on the explosion risk.

Battery safety is a very important issue, especially for rechargeable batteries. A battery explosion or fire can cause serious personal injury and property damage. Therefore, battery safety has always been a key issue in the field of battery technology. The battery safety issues mainly include: battery short-circuit, over-discharge, battery mechanical damage and use environment.

5. All stainless steel outer body, metal glass sealing structure, non-combustible inorganic electrolyte.

Related products:

Applications:

1. Petroleum Industry: Down hole high temperate EPG, flow meters, LWD/MWD, and other battery powered down hole

high temperature instruments ( processing and battery packs can be done as required)

2. Automobile industry: TPMS, Diesel engine cylinder monitor and so on.

3. Geothermic industry: High temperature inspection instruments

4. Military uses and other battery-powered devices used in high temperature

The high temperature lithium thionyl chloride battery is suitable for the monitoring and control of safety-relevant areas or particularly hazardous areas where high ambient temperatures can occur.Such as special instruments and meters for land and offshore oil fields, and meets the technical and safety standards for military applications at home and abroad. Exploration measurement instrument (mills,oil,fields), Date reading instrument, Electronic testing equipment, Sea equipment, Navigation and aviation equipment, Military communcation equipments.
