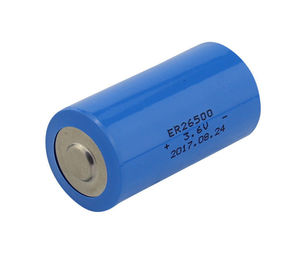

3.6V Er26500 SPC1520 Li Socl2 Primary Lithium Battery Non - Rechargeable 8500mAh For IOT Meter

3.6V Er26500 SPC1520 8500mAh Super Capacitor Li/Socl2 Primary Lithium Non-Rechargeable Battery

Product Overview

Key Advantages

1. High and stable voltage 3.6 V (optional 3.9 V)

2. High pulse current capability

3. No passivation

4. Long operating life

5. Light-weight

6. Wide operating temperature range(-40℃~+85℃)

7. Very low self-discharge (less than 2 % per year)

8. Outstanding storage capability

9. High safe reliability (hermetic laser sealing.

3.6V ER26500+SPC1520 Battery Specification:

ModelER26500 with SPC1520

Internal Resistance≤200mΩ

TypeEnergy Type/Bobbin Type

ChemistryLithium thionyl chloride(LiSOCl2)

Nominal Capacity8500mAh

Cut-off Voltage2.5V

Max Continuous Discharge Current 500mA

Max Pulse Discharge Current2A

Operating temperature -40°C~+85°C

Self Discharge~1% / year

Shelf Life10 years

Main Applications:

1. Utility Meters (AMR)
   Asset, Container & Cargo Tracking
   RFID Devices
   Sonar Buoys
   Communication Equipment
   Emergency & Medical Devices

2. Intner Of Things -IOT product

3. Gps tracker

4. Smart Lock

PLEASE NOTE: These batteries are LITHIUM PRIMARY batteries, which are NOT rechargeable. Do not attempt to charge these cells, as any attempt to do so may cause severe damage to both the battery and the charger.

The following are the ER26500 battery and SPC1520 Specifications

Chemistry: Lithium Thionyl Chloride ER26500 Battery

Nominal Capacity : 8.5Ah

Nominal Voltage : 3.6V

Max.continuous current : 150mA

Max.Pulse Capability : 300mA

Storage(recommended) : Max.30℃

Operating Temperature Range :﹣60℃～+85℃

Weight Approx. : 55g

***************************************************************************************************************************

SPC1520 1/2AA Super Pulse Capacitor Lithium Ion Battery

The Super pulse battery capacitor (SPC) is an energy storage device with the latest and cutting-edge technologies.

Specifications:

* Nominal Voltage: 3.60V

* Max. charge voltage: 3.95V

* Max. continuous discharging current: 500 mA

* Max. pulse discharging current: 2000 mA

* Operating temperature range: -40 °C ~ 85 °C

* Storage temperature: -30 °C ~ 60 °C

* Standard charging current: 20mA

Tags: lithium thionyl chloride battery,li socl2 rechargeable battery,internet of things battery,pulse capacitor,ER26500+HLC1520, 3.6v lithium battery,ER26500+HPC1520 lithium thionyl chloride battery,3.6v lithium battery,ER26500 with 1520 pulse capacitor,ER26500+SPC1520,custom lithium battery pack,IOT battery
