ER26500 SPC1530 HLC1550A HPC1550 Li SOCL2 Battery Pack Hybrid Pulse Capacitor For IOT Product

ER26500 SPC1530 HLC1550A HPC1550 Li SOCL2 Battery Pack Hybrid Pulse Capacitor For IOT Product

  • ER26500 SPC1530 HLC1550A HPC1550 Li SOCL2 Battery Pack Hybrid Pulse Capacitor For IOT Product
  • ER26500 SPC1530 HLC1550A HPC1550 Li SOCL2 Battery Pack Hybrid Pulse Capacitor For IOT Product
ER26500 SPC1530 HLC1550A HPC1550 Li SOCL2 Battery Pack Hybrid Pulse Capacitor For IOT Product
Product Details:
Place of Origin: CHINA
Brand Name: SER or OEM
Certification: CE ROSH
Model Number: ER26500+SPC1530
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: Negotiable
Packaging Details: standard/ customise
Delivery Time: 5-8 work days
Supply Ability: 100,000pcs per day
Contact Now
Detailed Product Description
Battery Type: ER26500 Battery With Capacitor Voltage: 3.6V
Capacity: 9000mAh Chemical System: LiSocl2
Size: 30*65mm Shelf Life: 10 Years
Application1: Smart Meters Application2: Internet Of Things
Application3: Water Meter Application4: Gps Tracker
Application5: Sonobuoys Feature 1: Long Life
Feature 2: High Pulse Current Drain Feature 3: No Passivation
Feature 4: Wide Temperature Range
High Light:

HPC1550 Li SOCL2 Battery

,

ER26500 Li SOCL2 Battery

,

Hybrid Pulse Capacitor Li SOCL2 Battery

ER26500+SPC1530 HLC1550A HPC1550 supercapacitor customized Li-SOCL2 battery pack with Hybrid Pulse Capacitor






                                                            Product Overview


HPC series are named as Hybrid Pulse Capacitor, a kind of new hybrid pulse capacitor integrating lithium-ion battery technology and super capacitor technology. Supercapacitors have a lower energy density than batteries but can discharge their energy very quickly and can handle high currents.

With HPC, we offer a power solution for long life, with high pulse current drain and passivation sensitive applications. The solution is a combination of lithium thionyl chloride( LiSOCL2 battery) batteries + HPC 1520 HPC1530 HPC1550



Key Advantages



  1. High and stable voltage 3.6 V (optional 3.9 V)
  2. High pulse current capability
  3. No passivation
  4. Long operating life
  5. Light-weight
  6. Wide operating temperature range(-40℃~+85℃)
  7. Very low self-discharge (less than 2 % per year)
  8. Outstanding storage capability
  9. High safe reliability (hermetic laser sealing.

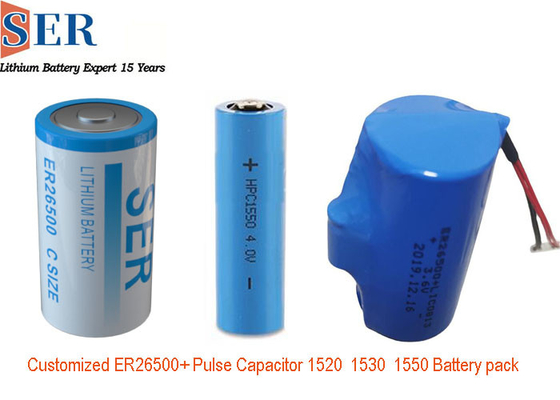

ER26500 SPC1530 HLC1550A HPC1550 Li SOCL2 Battery Pack Hybrid Pulse Capacitor For IOT Product 0


Main Applications:


Utility Meters (AMR)
Asset, Container & Cargo Tracking
RFID Devices
Sonar Buoys
Communication Equipment
Emergency & Medical Devices

Intner Of Things -IOT product

Gps tracker

Smart Lock


Product List

Hybrid Pulse Capacitor Specifications
Model No. Nominal Capacity Nominal Voltage Max. pulse
discharge current
Reference
Dimension
Weight
mAh V mA   g
HPC1520+ER14250 1200 3.65 2000 2/5AA +1/2AA 19
HPC1520+ER14335 1650 3.65 2000 2/5AA+2/3AA 22
HPC1520+ER14505 2400 3.65 2000 2/5AA+AA 28
HPC1520+ER17335 2100 3.65 2000 2/5AA+2/3A 27
HPC1520+ER26500 8500 3.65 2000 2/5AA+C 62
HPC1520+ER34615 19000 3.65 2000 2/5AA+D 114

HPC1530+ER14250 1200 3.65 3000 3/5AA +1/2AA 20
HPC1530+ER14335 1650 3.65 3000 3/5AA+2/3AA 23
HPC1530+ER14505 2400 3.65 3000 3/5AA+AA 29
HPC1530+ER17335 2100 3.65 3000 3/5AA+2/3A 28
HPC1530+ER17505 3400 3.65 3000 3/5AA+ A 34
HPC1530+ER26500 8500 3.65 3000 3/5AA+C 63
HPC1530+ER34615 19000 3.65 3000 3/5AA+D 115

HPC1550+ER14335 1650 3.65 5000 AA+2/3AA 33
HPC1550+ER14505 2400 3.65 5000 AA+AA 39
HPC1550+ER17335 2100 3.65 5000 AA+2/3A 38
HPC1550+ER17505 3400 3.65 5000 AA+ A 44
HPC1550+ER26500 8500 3.65 5000 AA+C 73
HPC1550+ER34615 19000 3.65 5000 AA+D 125

Remark: The HPC+ER battery pack is able to provide high pulse drain, mainly used for GSM/4G/NB-IOT applications. Above pack solutions offer various options for different capacity, dimension, lifespan requirements.




Keywords: Lithium thionyl chloride battery,li socl2 rechargeable battery,internet of things battery,pulse capacitor,ER26500+HLC1550A, 3.6v lithium battery,ER26500+SPC1520 lithium thionyl chloride battery,3.6v lithium battery,ER26500 with 1550 pulse capacitor,ER26500+SPC1550,custom lithium battery pack,IOT battery
