Customized 2/3A Li SOCL2 Battery ER17335 3.6 Voltage 1900mAh For Miner Light

Customized 2/3A Li SOCL2 Battery ER17335 3.6 Voltage 1900mAh For Miner Light

  • Customized 2/3A Li SOCL2 Battery ER17335 3.6 Voltage 1900mAh For Miner Light
  • Customized 2/3A Li SOCL2 Battery ER17335 3.6 Voltage 1900mAh For Miner Light
  • Customized 2/3A Li SOCL2 Battery ER17335 3.6 Voltage 1900mAh For Miner Light
Customized 2/3A Li SOCL2 Battery ER17335 3.6 Voltage 1900mAh For Miner Light
Product Details:
Place of Origin: CHINA
Brand Name: SER or OEM
Certification: CE ROSH
Model Number: ER17335
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: Negotiable
Packaging Details: standard/ customise
Delivery Time: 5-8 work days
Supply Ability: 100,000pcs per day
Contact Now
Detailed Product Description
Battery Type: 2/3A Size Voltage: 3.6V
Capacity: 1,900mAh Chemical System: Li-Socl2
Size: 18.5mm*50.5mm Shelf Life: 10 Years
Application1: Water Heating Meter Application2: Smoke Alarm
Application3: Miner Light Application4: Taxi Meter
Shape: Cyclindrical Application: Water Leakage Sensor
Highlight:

lithium coin battery

,

lithium thionyl chloride cell

Customized 2/3A Li-SOCI2 battery ER17335 3.6V 1900mAh Lithium Battery for miner light ,Water leakage sensor





Technical specifications:



Battery Technology Lithium thionyl chloride / LiSOCL2
Battery structure High capacity type
Nominal Voltage 3.6V
Nominal Capacity 1900mAh
Open circuit voltage 3.66V (at +20°C)
Cut off Voltage 2.0V
Max. Constant Current 100mA
Max. Pulse Current 200mA
Operating Temperature -55°C~+85°C/-67°F~+185°F
Storage Life ≥10 years
Self – Discharge Rate: <1% per year
External Diameter (Max) 17mm
External Height (Max) 33.5mm
Weights 20g



































Features



1.High continuous discharge current and current pulses.
2.High energy density, 430Wh/Kg.
3.Open circuit voltage above 3.65V for single cell.
4.Wide range of operating temperature(-55°C~+85°C).
5.Stable voltage and current over 95% of the cell capacity is discharged at high plateau voltage.
6.Long operating time (over 8 years) for continuous low current discharge with high current pulses.
7.Low self-discharge rate (less than 1% per year) and long storage life (over 10 year under normal room temperature).



Application

The battery have wide applications:

Utility water/ Gas Meter, Automatic Meter Reading;

Medical Equipment, CMOS memory backup, Tracking Systems,Remote Monitory Systems;

Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices, Electronic Toll Tags;

Scientific Instruments, Portable Communication Equipment, Military Radio Stations;

and other electric powered devices requiring small size, high capacity batteries.

Customized 2/3A Li SOCL2 Battery ER17335 3.6 Voltage 1900mAh For Miner Light 0


Packaging & Shipping



Packing:

Tray bulk, Blister card, PVC shrink, Gift-Box, Nude packing, OEM packing, etc.



Shipping:

Leadtime is 3-20 working days for normal orders.



Pictures:

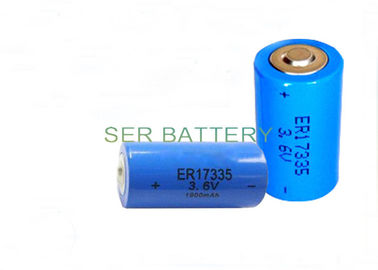

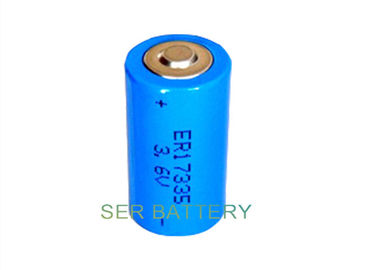

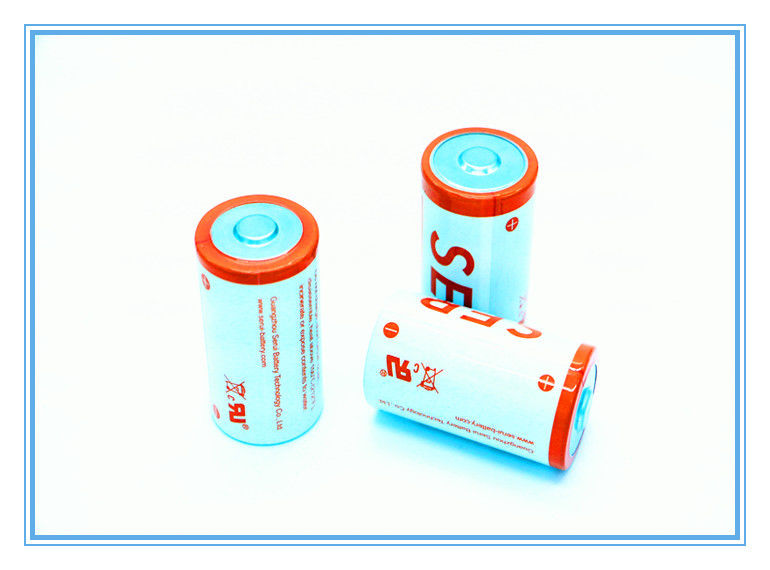

Customized 2/3A Li-SOCI2 battery ER17335 3.6V 1900mAh Lithium Battery for miner light ,Water leakage sensor

Customized 2/3A Li SOCL2 Battery ER17335 3.6 Voltage 1900mAh For Miner Light 1


We can add the Pin, wire and connector on the battery according to requirement

Customized 2/3A Li SOCL2 Battery ER17335 3.6 Voltage 1900mAh For Miner Light 2



Why Choose us?



Company Advantages:


We have been continously developing new products to meet requirements of different customers and applications since 1980. what's more, performance of batteries such as safety, energy density, temperature characteristics, discharge platform, resistance, cycle life is always improving.
Pursuing a business concept of “Quality First”, our assembly lines are certified by the Chinese military and ISO9001 quality system. We also have a fully equipped environment and reliability testing center to assure our products meeting military specifications.



High quality batteries:


Our batteries are in enough capacity, and lower in RI. Before shipment, we will 100% inspect and ensure battery quality well approved by our clients.


Better service:
Professional and experienced engineers can provide satisfied perfect solutions to customers. New designs can lead to actual products within 15days.A professional,dedicated and well known technical& marketing team with the ability to identify,support and serve our customers with diamante service.

We always offer customers with highest quality, reasonable price and intimate after-service to support them on marketing developing. It is our wish to obtain muti-benefit with global users through OEM and ODM business.



Our Certifications:

Customized 2/3A Li SOCL2 Battery ER17335 3.6 Voltage 1900mAh For Miner Light 3

Our Workshop

Customized 2/3A Li SOCL2 Battery ER17335 3.6 Voltage 1900mAh For Miner Light 4



Look at those pictures. To make sure the producing environment is total dry, we introduced foreign technology and machine. This drying system comes from Denmark; it can generate 54500CBM dry air per hour.

It owns modern produce equipment and rater complete necessary facilities.



Meanwhile we have many automatic machines; this is our automatic voltage test machine. Those modern production equipments laid a solid foundation for producing high-quality products.



Customized 2/3A Li SOCL2 Battery ER17335 3.6 Voltage 1900mAh For Miner Light 5

We participate in a variety of trade fairs every year.On Electronics Show we discuss with customers about our products and help them solve questions face to face.We have established contacts with many potential buyers from other places as America,Australia, Belgium, Israel,Germany,the Netherlands, Canada etc.
