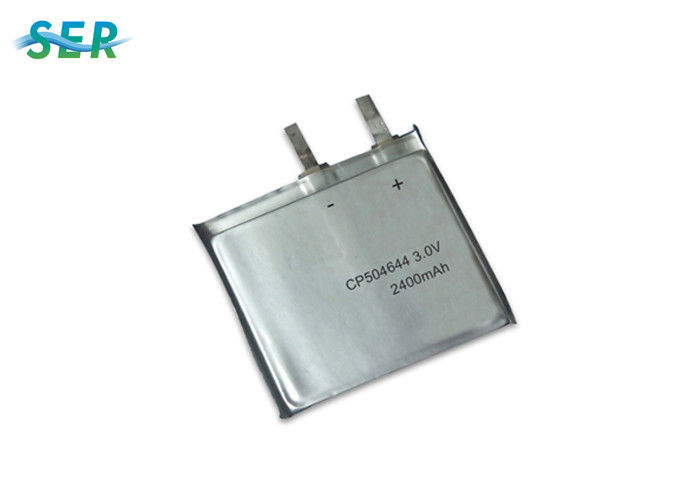

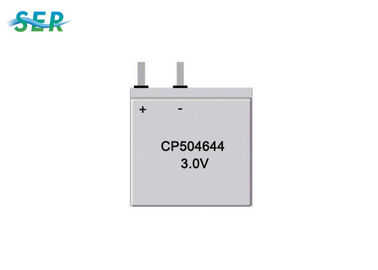

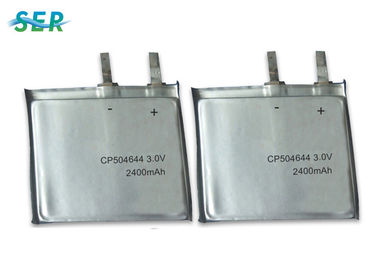

Primary Lithium Ultra Thin Battery CP504644 3.0 Voltage 2400mAh RFID Application

Primary Lithium Ultra Thin Battery CP504644 3.0 Voltage 2400mAh RFID Application

  • Primary Lithium Ultra Thin Battery CP504644 3.0 Voltage 2400mAh RFID Application
  • Primary Lithium Ultra Thin Battery CP504644 3.0 Voltage 2400mAh RFID Application
  • Primary Lithium Ultra Thin Battery CP504644 3.0 Voltage 2400mAh RFID Application
Primary Lithium Ultra Thin Battery CP504644 3.0 Voltage 2400mAh RFID Application
Product Details:
Place of Origin: CHINA
Brand Name: SER or OEM
Certification: CE ROSH
Model Number: 504644
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: standard/ customise
Delivery Time: 5-8 work days
Supply Ability: 500,000pcs per month
Contact Now
Detailed Product Description
Battery Shape: Square Voltage: 3.0V
Capacity: 2400mAh Chemical System: Li-MnO2
Size: 5.2mm*47mm*45mm Shelf Life: 10 Years
Application1: Room Key Card Application2: Smart Tag
Application3: Wearable Electrical Device Application4: Laser Sight
Application5: IOT Sensors Application6: RFID Lock
Application7: Track Alarm
High Light:

flat lithium battery

,

lithium ion flat cell

CP504644 3.0V 2400mAh square soft package primary lithium battery for RFID



Technical specifications:



Battery Technology Lithium Manganese Dioxide Battery / LiMNO2
Battery structure High capacity type
Nominal Voltage 3.0V
Nominal Capacity 2400mAh
Open circuit voltage 3.0V (at +20°C)
Cut off Voltage 2.0V
Max. Constant Current 1200mA
Max. Pulse Current 1500mA
Operating Temperature -40°C~+60°C
Storage Life 10 years
Storage Condition Temperature ≤ 30℃ Humidity ≤ 75%RH
Dimension (Max) 5.2*47*45mm
Weights 17.5g



































Features



1. Totally safe, no explosion at all, be able to bear cruel tests without any protection such as short circuit, puncturing, etc.
2. Totally thin.Thin thickness. 0.4mm to 8mm.Dimensions can be customized according to different demands, short product development period, meeting customers’ varieties of personalized needs.
3. 8 years' running time at low discharge current,the battery self-discharge less than 2% per year at room temperature
4. Light weight and high Energy Density.The specific energy density of each battery is 356Wh/kg, more than 50% higher than steel shell lithium battery under the condition of the same weight
5. Wide Operating Temperature Range, the battery with a strong adaptability to temperature can be in work between -40℃ ~ +60℃
6. Without voltage passivation, no activation necessary after long time storage, install-and-use immediately, free of maintenance



Application

The battery have wide applications:

Wireless telecommunication devices and wearable electrical device;and RFID products,RFID lock, road toll transponder, IC cards,Room key card,Smart tag,track alarm, etc; and
Smoke detectors,Laser Sight,IOT sensors, security alarms, seismometers, locking system, monitoring system, etc.

Primary Lithium Ultra Thin Battery CP504644 3.0 Voltage 2400mAh RFID Application 0


Packaging & Shipping



Packing:

Tray bulk, Blister card, PVC shrink, Gift-Box, Nude packing, OEM packing, etc.



Shipping:

Leadtime is 3-20 working days for normal orders.



Pictures:

CP502440 square soft positioning card battery of lithium primary battery 3.0V shape can be customized

Primary Lithium Ultra Thin Battery CP504644 3.0 Voltage 2400mAh RFID Application 1


We can add the Pin, wire and connector on the battery according to requirement

Primary Lithium Ultra Thin Battery CP504644 3.0 Voltage 2400mAh RFID Application 2
