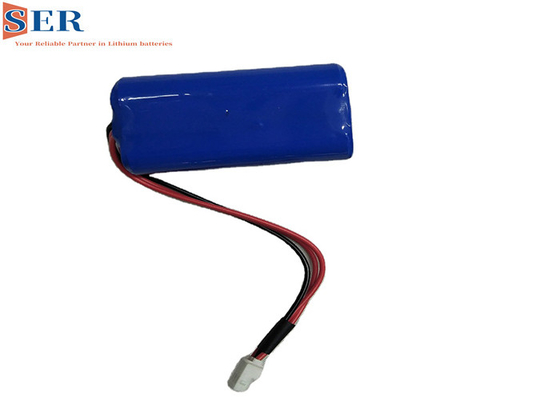

2ER14505 1S2P Li SOCL2 Battery ER14505-2 Parallel 3.6V 4800mah For Ram Cmos Circuit

2ER14505 1S2P Li SOCL2 Battery ER14505-2 Parallel 3.6V 4800mah For Ram Cmos Circuit

  • 2ER14505 1S2P Li SOCL2 Battery ER14505-2 Parallel 3.6V 4800mah For Ram Cmos Circuit
  • 2ER14505 1S2P Li SOCL2 Battery ER14505-2 Parallel 3.6V 4800mah For Ram Cmos Circuit
  • 2ER14505 1S2P Li SOCL2 Battery ER14505-2 Parallel 3.6V 4800mah For Ram Cmos Circuit
2ER14505 1S2P Li SOCL2 Battery ER14505-2 Parallel 3.6V 4800mah For Ram Cmos Circuit
Product Details:
Place of Origin: CHINA
Brand Name: SER or OEM
Certification: CE ROSH UL
Model Number: 2ER14505
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: standard/ customise
Delivery Time: 5-8 work days
Supply Ability: 100,000pcs per day
Contact Now
Detailed Product Description
Voltage: 3.6V Capacity: 4800mAh
Size: 29mm*50.5mm Application1: Smart Locks
Application2: Detectors Application4: Digital Control Machine
Shape: Cyclindrical Battery Type: LiSOCl2,Primary Battery
Type: Spiral Type,Energy Type,Li/SocL2 Battery Application: Electronic Toys,Flashlight,laptop Etc,photo Frame,Ammeter
Certification: CE SGS ROSH MSDS,UL CE RoHS FCC Color: Blue,Black Pink Purple Blue PVC
Warranty: More Than 18 Months Package: Industrial Package
Storage Life: 10 Years
High Light:

2ER14505 1S2P Li SOCL2 Battery

,

4800mah Li SOCL2 Battery

,

Ram Cmos Circuit Li SOCL2 Battery

2ER14505 1S2P Li SOCL2 Battery ER14505-2 Parallel 3.6V 4800mah For Ram Cmos Circuit 0

Customized Lithium Battery 2ER14505 1S2P lisocl2 ER14505-2 Parallel 3.6V 4800mah for Ram and Cmos Circuit





Technical specifications:




Battery Technology Lithium thionyl chloride / LiSOCL2
Battery structure High capacity type
Nominal Voltage 3.6V
Nominal Capacity 4800mAh
Open circuit voltage 3.66V (at +20°C)
Cut off Voltage 2.0V
Max. Constant Current 100mA
Max. Pulse Current 300mA
Operating Temperature -55°C~+85°C/-67°F~+185°F
Storage Life ≥10 years
Self – Discharge Rate: <1% per year
External Diameter (Max) 29mm
External Height (Max) 50.5mm
Weights 40g
Certification CE RoHS SGS UN38.3 MSDS

Application

Meters, GPS tracking, Medical devices, Military Radio, etc.
Sample Lead time As usual 7-10 working days

2ER14505 1S2P Li SOCL2 Battery ER14505-2 Parallel 3.6V 4800mah For Ram Cmos Circuit 1























































Features




1. High continuous discharge current and current pulses.


2. High energy density, 430Wh/Kg.


3. Open circuit voltage above 3.65V for single cell.


4. Wide range of operating temperature(-55°C~+85°C).


5. Stable voltage and current over 95% of the cell capacity is discharged at high plateau voltage.


6. Long operating time (over 8 years) for continuous low current discharge with high current pulses.


7. Low self-discharge rate (less than 1% per year) and long storage life (over 10 year under normal room temperature).



2ER14505 1S2P Li SOCL2 Battery ER14505-2 Parallel 3.6V 4800mah For Ram Cmos Circuit 2



Model List




Type IEC Model Model

Size(φ)

mm×mm

Voltage

(V)

Capacity

(mAh)


Maximum continuous current (mA)
Weight(g)
Energy Type 1/2AA ER14250H 14.5×25.0 3.6 1200 50 11
2/3AA ER14335H 14.5×33.5 3.6 1600 50 13
AA ER14505H 14.5×50.5 3.6 2400 100 19
2/3A ER17335H 17.5×33.5 3.6 2200 100 19
  ER17505H 17.5×50.5 3.6 3500 130 26
A ER18505H 18.5×50.5 3.6 3800 100 32
C ER26500H 26.2×50.0 3.6 9000 200 55
D ER34615H 34.2×61.5 3.6 19000 200 107
CC ER261020 26.2×102.0 3.6 15000 200 100
DD ER341245 34.2×124.5 3.6 35000 300 220
9V ERA9V 49.8×17.8×27.5 10.8 1200 50 40
Power Type 1/2AA ER14250M 14.5×25.0 3.6 1000 200 11
2/3AA ER14335M 14.5×33.5 3.6 1300 200 13
AA ER14505M 14.5×50.5 3.6 2000 400 19
2/3A ER17335M 17.5×33.5 3.6 1900 400 20
  ER17505M 17.5×50.5 3.6 3000 600 30
A ER18505M 18.0×50.5 3.6 3200 600 32
C ER26500M 26.2×50.0 3.6 6500 1000 55
D ER34615M 34.2×61.5 3.6 14500 2000 107





Applications


The battery have wide applications:



Utility water/ Gas Meter, smart locks, Automatic Meter Reading; Medical Equipment, CMOS memory backup, Tracking



Systems,Remote Monitory Systems;



Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices, Electronic Toll Tags; Scientific Instruments, Portable



Communication Equipment, Military Radio Stations; and other electric powered devices requiring small size, high power Batteries.

2ER14505 1S2P Li SOCL2 Battery ER14505-2 Parallel 3.6V 4800mah For Ram Cmos Circuit 3


Packaging & Shipping




Packing:

Tray bulk, Blister card, PVC shrink, Gift-Box, Nude packing, OEM packing, etc.





Customized Lithium Battery 2ER14505 1S2P lisocl2 ER14505-2 Parallel 3.6V 4800mah for Ram and Cmos Circuit





Why Choose us?



Company Advantages:



We have been continously developing new products to meet requirements of different customers and applications since 1980.



what's more, performance of batteries such as safety, energy density, temperature characteristics, discharge platform,

resistance, cycle life is always improving.


Pursuing a business concept of “Quality First”, our assembly lines are certified by the Chinese military and ISO9001 quality system.



We also have a fully equipped environment and reliability testing center to assure our products meeting military specifications.



High quality batteries:


Our batteries are in enough capacity, and lower in RI. Before shipment, we will 100% inspect and ensure battery quality well approved by our clients.


Better service:


Professional and experienced engineers can provide satisfied perfect solutions to customers. New designs can lead to actual products within 15days.



A professional,dedicated and well known technical& marketing team with the ability to identify,support and serve our customers with diamante service.

We always offer customers with highest quality, reasonable price and intimate after-service to support them on marketing developing. It is our wish to obtain muti-benefit with global users through OEM and ODM business.



Our Certifications:


2ER14505 1S2P Li SOCL2 Battery ER14505-2 Parallel 3.6V 4800mah For Ram Cmos Circuit 4

Our Factory


2ER14505 1S2P Li SOCL2 Battery ER14505-2 Parallel 3.6V 4800mah For Ram Cmos Circuit 5

FAQ


1: How long is the sample time of the battery ? Does the sample fees need to pay ?
If we just have stock , we could send to you immediately .If not ,you maybe need to wait 3-5 days . We could provide 3-5 pcs free
samples for your testing ,but the freight need to be paid by you .

2: How much the transportation freight of samples?
The freight depends on the weight and packing size and destination from here to your location. You could contact us for more
details .

3.How long can I expect to get the sample?
The samples will be ready for delivery in 3-5days. The samples will be sent via international express such as DHL , UPS , TNT ,
FEDEX and would be arrived within 5-7 days or 10-15 days by some economic express .

4: How to control quality?
A, all the raw materials by IQC (Incoming Quality Control )before mass production.
B, process each link in the process of IPQC (Input process quality control)patrol inspection.
C, after finished by QC full inspection before packing into the next process packaging.
D, OQC before shipment for each battery to do full inspection.

5: Can we have our Logo or company name to be printed on your products or package? Sure. we also provide OEM service. But
different kinds of batteries have different demands ,so please contact us for more details if you need .

6: How to order?
Please send us your purchase order by Email or call us sales line : 0086-(0)20-39293119 . or we can make you proforma invoice under your request. We need to know the following information for your order before sending
you PI.
1) Product information-Quantity, Specification(Size, Material, Technological if needed and Packing requirements etc.)
2) Delivery time required.
3) Shipping information-Company name, Street address, Phone&Fax number, Destination sea port.
4) Forwarder's contact details if there's any in China.

7: How can order the products without any acknowledge of import?
We could arrange the shipping by air or express for you and deliver everything to your port or provide you door to door service.

8: Do you have stock?
For some best seller batteries ,we will do some stock .If you need ,please tell us the MODEL NO ,we will check the stock for you
soon .
