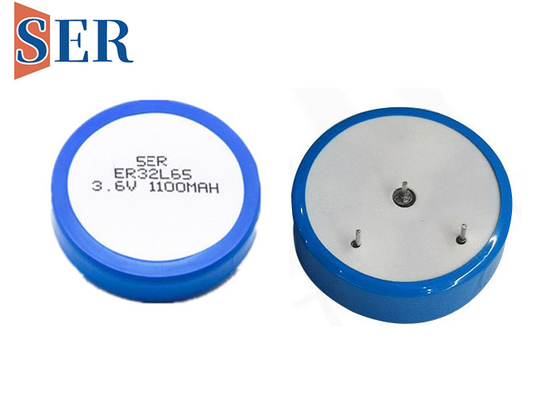

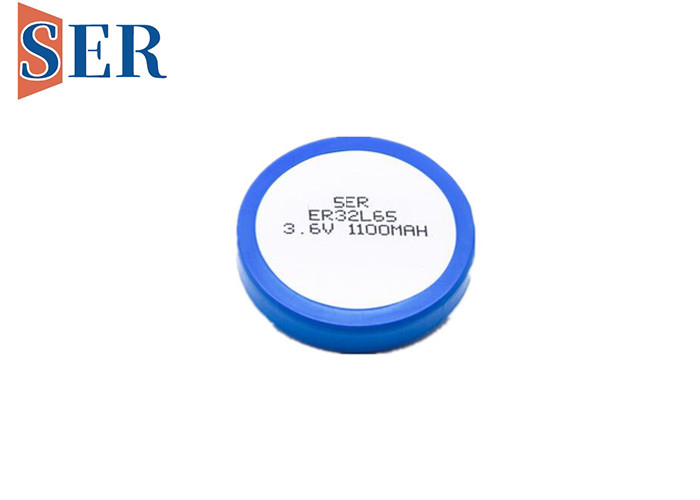

ER32L65 3.6V 1/10D Button Cell Battery Buckle Type 1000mAh

ER32L65 3.6V 1/10D Button Cell Battery Buckle Type 1000mAh

ER32L65 3.6V 1/10D Button Cell Battery Buckle Type 1000mAh
ER32L65 3.6V 1/10D Button Cell Battery Buckle Type 1000mAh
ER32L65 3.6V 1/10D Button Cell Battery Buckle Type 1000mAh
Product Details:
Place of Origin: CHINA
Brand Name: SER or OEM
Certification: CE ROSH UN
Model Number: ER32L65
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: standard/ customise
Delivery Time: 5-8 work days
Supply Ability: 100,000pcs per day
Contact Now
Detailed Product Description
Voltage: 3.6V Capacity: 1000mAh
Size: 32.9*7.1mm Application1: Oil Prospecting Equipment
Application2: Petroleum Exploration Equipment Application4: Visonic Alarm Sirens
Shape: Button,coin,wafer Battery Type: LiSOCl2,Primary Battery
Type: Spiral Type,Energy Type,Li/SocL2 Battery Application: Electronic Toys,Flashlight,laptop Etc,photo Frame,Ammeter
Certification: CE SGS ROSH MSDS,UL CE RoHS FCC Color: Blue,Black Pink Purple Blue PVC
Warranty: More Than 18 Months Package: Industrial Package
Storage Life: 10 Years
High Light:

ER32L65 Button Cell Battery

,

1000mAh Button Cell Battery

,

Buckle Type Button Cell Battery

Li-SOCL2 Batteries  Catalogue(图1)


ER32L65 3.6V 1/10D Primary Lithium Thionyl Chloride Battery button Cell Battery ER32L65 buckle type
Battery Description:





Battery Model:

ER32L65/ 1/10D size

Battery Brand:

SER or OEM

Battery Capacity:

1000mAh ( at 1mA,under 25℃, 2.0V cut-off)

Dimension:

32.9*7.1mm

Open Circuit Voltage:

 ≥3.6V

Load Voltage:

3.2V

Max continuous current

10mA ( to get 50% of capacity with 25℃, 2.0V cut-off)

Max Discharge current

50mA(1s pulse to 3.0V)

Working temperature:

-55~+85℃

Storage Life:

10 years

Storage condition:

clean, cool (preferably below +20℃, not exceeding +30℃), dry and ventilated

Applications:

Water counters,gas meters,automatic meter reading,Backup AMR,electronic meters,PC clocks,Patient monitoring,Smoke detectors,intrusion sensors,Tracking devices for hunting dogs

High light:

Coin Li-SOCL2 bobbin type batteries ER32L065 1/10D 3.6V Nickel Pins for Backup AMR

3.6V 1/10D Primary Lithium Thionyl Chloride Battery button Cell Battery ER32L65 buckle type





Compatibility:

 SL889, ER34065, 1/10D, HP-5134 ,ER34070 ,30880-QTC85,ER32L65, ER33060, SL-389, SL-389/P, SL-789, SL-789/P, TL-2134, TL-4934, TL-5134, TL-5934, XL-210F





Main Features:



1. High and stable working voltage

    The standard voltage is 3.6V and the working voltage maintains an obvious stability during the entire service life; more than 90% of the battery capacity is output on a high-voltage platform with almost constant voltage;

2. Wide temperature range

    Can be used at temperatures between -55°C and 85°C.

3. High energy density

   The specific energy of lithium-thionyl chloride battery is as high as 700Wh/kgL.

4. Better storage life and reliability

    With particularly low self-discharge characteristics, the annual self-discharge rate is less than 1%, and the shelf life of the battery

has been confirmed to be stored for more than 10 years at room temperature.

5. The manufacturing process of stainless steel shell and metal-glass hermetic welded structure.

6. good security, safety

    Does not contain mercury, cadmium, lead and other heavy metals, no environmental hazards.

Warning:

Do not recharge, short circuit, crush, disassemble, heat above +125℃, incinerate,or expose contents to water. Dispose of used batteries properly in case of explosion, burn and leakage.






Applications:



Li-SOCL2 Batteries  Catalogue(图2)

      Main Applications:



a.    Mainly used in the civil field: AMR and CMOS circuit boards for public instruments

b.    Various smart meters; smart electricity meters, water meters, heat meters, gas meters

.    Memory and backup power supply: memory backup, clock power supply, data backup power supply

.    Radio alarms/sensors: smoke alarms, temperature monitors

.    remote monitoring system: positioning device, marine telemetry system

.     Automotive electronics: automotive tire pressure monitoring system (TPMS), braking system

g.     Industrial field: microcomputer control system, tax control machine, automated instrumentation and equipment, oil wells, mines, medical equipment, burglar alarms, wireless communications, marine lifesaving, etc.

h .    Modern military fields: aviation, aerospace, marine electronics, amphibious weapons, etc.





Pictures:



Coin Li-SOCL2 bobbin type batteries ER32L065 1/10D 3.6V Nickel Pins for Backup AMR

3.6V 1/10D Primary Lithium Thionyl Chloride Battery button Cell Battery ER32L65 buckle type



We can add the Pin, wire and connector on the battery according to requirement
