Place of Origin: | China |
Brand Name: | SER or OBM |
Certification: | CE, MSDS,UN38.3 |
Model Number: | CP502425 |
Minimum Order Quantity: | 3000PCS |
---|---|
Price: | 1-12USD/PC |
Packaging Details: | Standard |
Delivery Time: | 10-15days |
Payment Terms: | T/T, L/C |
Supply Ability: | 50000PC/Day |
Model Name: | CP502425 | Voltage: | 3.0V |
---|---|---|---|
Type: | Li-MnO2 Battery Pouch Cell | Capacity: | 350mAh |
Work Temperature: | -40℃~+70℃ | Color: | Silver |
Applications: | RFID Reader,Personnel Positioning Card,GPS Tracker,Portable Listening Device,RFID Tag,LoRaWAN Devices, IoT,Animal Identification,Smart Card | OEM/ODM:: | Acceptance |
High Light: | Lithium Manganese Soft Pack Battery,CP502425 Soft Pack Battery |

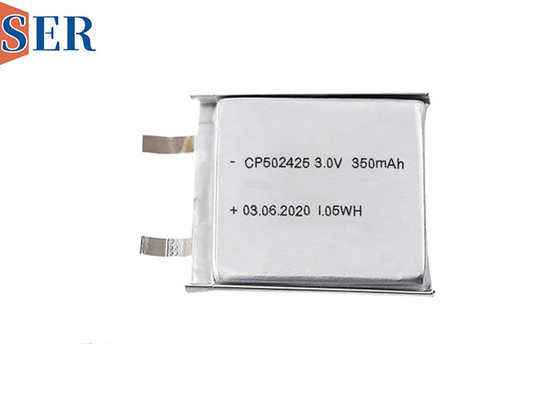

CP502425 CP502525 Lithium manganese soft pack battery 3.0V Li-MnO2 Soft Battery Pouch Cell for RFID IoT LoRa Alar
Specification of CP502425 Lithium manganese soft pack battery: |
Specification | Parameters | CP502425 Lithium manganese soft pack battery |
Nominal | Voltage | 3.0V |
Capacity | 350mAh @ 0.2C to 2.0 V @ 23° C | |
Dimension | 5*24*25mm | |
Electrical | Constant Discharge Current | 50mA |
Max Discharge Current | 300 mA | |
Physical | Terminals/ Connector | Nickel Tabs, wire, plug or OEM |
Others | Working Temperature | -20 ~ +70℃ |
Storage Temperature | 0~25℃ | |
Applications | RFID reader,Personnel positioning card,GPS tracker,Portable listening device,RFID Tag,LoRaWAN devices, IoT,Animal identification,Smart Card | |
Tags | CP502425,CP502425 battery,CP502525, Lithium manganese soft pack battery,Li-MnO2 Soft Battery,Pouch Cell,3.0V Li-MnO2 Soft Battery,soft pack battery 3.0V | |
Features of CP502425 Lithium manganese soft pack battery: |
Product Key Features
1. High Energy Density up to 450Wh/kg.
2. Wide Operating Temperature Range
-40℃~+70℃
3. Great safety.
Do not explode, do not catch fire.
4. Long Shelf Life, Low self-discharge rate
Can be stored at room temperature for more than 5-8 years
5. Flexible Design, Support customized battery.
6. Light weight.
Suitable for all kinds of wearables and internet of things products
7. Li-MnO2 Soft Batteries stable discharge voltage, up to 3.0V
8. No voltage delay,NO passivation.
CP502425 smart card battery electronic tag battery, standard size 5.0 × 25 × 25mm, weight 7.5g, rated voltage 3.0V, product capacity 350mAh, standard discharge 50mA, Max discharge current 300mA, instantaneous pulse 500 mA. 3.0 v-cp lithium-manganese Battery, lithium-manganese Battery: as a new technology, it has the advantages of high energy density, safety and low self-discharge rate.
We have a professional R&D team, we are experienced to customize battery packs according to clients' demands and make most suitable battery solution for them.
We have got our mindset stablished to be the best energy solution provider.
Thin Li-MnO2 Battery Model List |
Model Size | Nominal Capacity | Max Continuous Discharge Current | Max Pulse Discharge Current |
CP042529 | 22mAh | 2mA | 4mA |
CP042722 | 15 mAh | 1mA | 2mA |
CP042922 | 15mAh | 1mA | 2mA |
CP044040 | 50mAh | 5mA | 10mA |
CP044560 | 100mAh | 10mA | 20mA |
CP052039 | 25 mAh | 2 mA | 4 mA |
CP052722 | 22mAh | 1mA | 2mA |
CP053050 | 80mAh | 15mA | 30mA |
CP054248 | 100mAh | 20mA | 40mA |
CP064348 | 200mAh | 20mA | 50mA |
CP082922 | 50 mAh | 20mA | 80mA |
CP084248 | 320mAh | 20mA | 50mA |
CP102015 | 30mAh | 2mA | 5mA |
CP104248 | 420mAh | 100mA | 200mA |
CP105050 | 420mAh | 100mA | 200mA |
CP105075 | 450mAh | 200mA | 300mA |
CP105256 | 500mAh | 30mA | 50mA |
CP124444 | 420 mAh | 75 mA | 150mA |
CP142828 | 160mAh | 25mA | 50mA |
CP142828H | 140mAh | 50mA | 100mA |
CP153030 | 170mAh | 40mA | 80mA |
CP153030H | 140mAh | 50mA | 100mA |
CP154580 | 1000mAh | 150mA | 300mA |
CP151015 | 18mAh | 0.5mA | 1mA |
CP161230H | 45mAh | 16mA | 30mA |
CP164548 | 700mAh | 50mA | 100mA |
CP181234 | 125mAh | 25mA | 50mA |
CP183123 | 150mAh | 45mA | 75mA |
CP202540 | 350mAh | 75mA | 150mA |
CP203030 | 230mAh | 50mA | 100mA |
CP203034 | 270 mAh | 50 mA | 100mA |
CP203040 | 210mAh/380MAH | 100mA | 200mA |
CP204517 | 210mAh | 20mA | 50mA |
CP204547 | 750mAh | 50mA | 100mA |
CP222920 | 150mAh | 45mA | 75mA |
CP224248 | 850mAh | 100mA | 200mA |
CP225050 | 1000mAh | 200mA | 400mA |
CP225080 | 1700mAh | 200mA | 400mA |
CP242030 | 230mAh | 50mA | 100mA |
CP255050 | 1200mAh | 150mA | 300mA |
CP251525 | 150mAh | 40mA | 80mA |
CP251626 | 150mAh | 60mA | 150mA |
CP252525 | 250mAh | 30mA | 60mA |
CP255047 | 1250mAh | 150mA | 300mA |
CP255080 | 2050mAh | 300mA | 600mA |
CP302525 | 350mAh | 75 mA | 150 mA |
CP304580 | 2500mAh | 200mA | 500mA |
CP321626 | 250mAh | 50mA | 100mA |
CP334728 | 700mAh | 100mA | 200mA |
CP352440 | 750mAh | 100mA | 300mA |
CP355050 | 2000mAh | 500mA | 1000mA |
CP402020 | 275mAh | 50mA | 100mA |
CP453450 | 1700mAh | 300mA | 600mA |
CP501525 | 350mAh | 80mA | 150mA |
CP502440 | 1200mAh | 150mA | 300mA |
CP503436 | 1550mAh | 200mA | 500mA |
CP503742 | 1700mAh | 300mA | 600mA |
CP505050 | 3000mAh | 500mA | 1500mA |
CP543537 | 1500mAh | 200mA | 400mA |
CP603450 | 2400mAh | 500mA | 1000mA |
CP603956 | 3300mAh | 800mA | 1500mA |
CP702242 | 1500mAh | 200mA | 1200mA |
CP703028 | 1000mAh | 200mA | 400mA |
CP703448 | 2000mAh | 1000mA | 1500mA |
CP806468 | 8000mAh | 2000mA | 4000mA |
CP7839109 | 9000mAh | 2000mA | 3000mA |
CP9V | 1200mAh | 150mA | 300mA |
Packing:
1. Packing in a tray +inner box+carton box.
2. Single battery packing in PE bag+ inner box+ carton box.
3. Customized package etc.
Shipping method:
1. For samples, usually by express or by air.
2. For orders, by truck, by air ,by express or by sea depends on customer requirement.
Battery Production: |
What we offer:
1. Strictly quality control
2. First rate service
3. Professional technical advisory
4. Complete production base
5. Continuous supply guarantee
Applications: |
Widely used for :
Aactive RFID tag cards: Smart Parking, container identification, vehicle fee verification, mine personnel identification
Smart devices: medical devices, smoke alarms
Electronic products: electronic dictionary, Electronic Watches, electronic scales, calculator
Other: electric tools and toys, micro-instrumentation, medical devices, small appliances, etc.
We can make Li-MnO2 soft battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC applications.
NO MOQ with fast lead time.
Welcome for any customized.
All we do what we want to help you to start your good idea.
