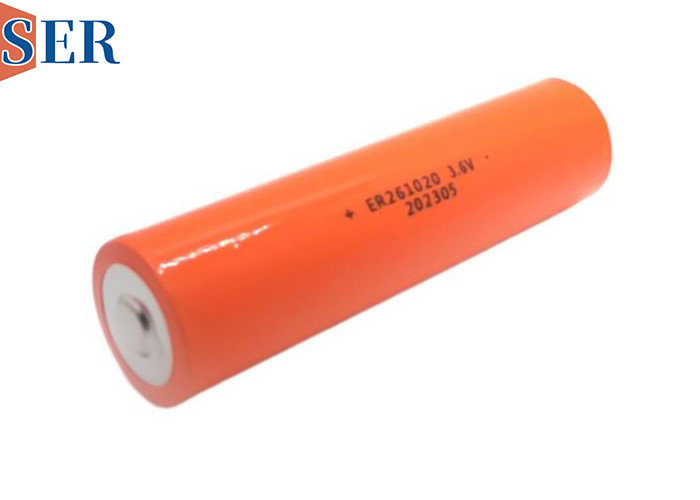

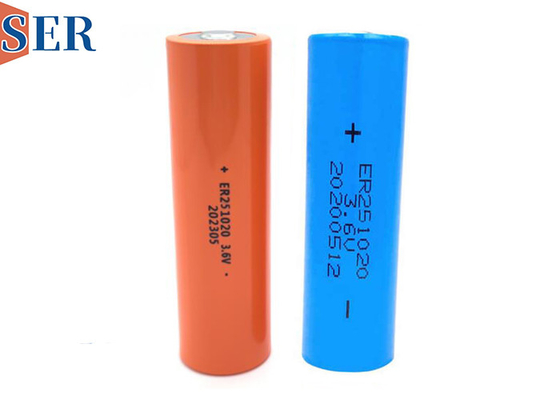

ER261020s,EER261020S CC Size Lisocl2 Battery 3.6V 13000mAh High Temperature Battery For MWD ToolsR261020 battery,high temperature battery,cc size battery,er261020m,high temperature battery CC size,LiSOCL2 battery,high temperature lisocl2 battery

Battery Features:

Title: high temperature battery ER261020S IEC: CC size Lisocl2 battery Nominal Voltage: 3.6 Volt Max.Dimension: 26.2×102mm Weight: 103.5g Standard Current: 50 mA Continuous Discharge Current: 800 mA Pulse discharge current: 1200mA Operating Temperature(c): -40~+230 °C Terminate Voltage: 2.0 Volt Available Terminations: S, T, Solder Tabs; P:Axial Pins Standard Terminations Special Termination are aviable upon request

Related products: ER10450S 0.5Ah φ10.0×45.0mm ER14250S 0.7Ah φ14.5×25.0mm ER14335S 1.0Ah φ14.5×33.5mm ER14505S 1.6Ah φ14.5×50.5mm ER17335S 1.7Ah φ17.0×33.5mm ER18505S 2.4Ah φ18.5×50.5mm ER26500S 4.5Ah φ26.0×50.0mm ER26102S 10Ah φ26.0×102.0mm ER34615S 12Ah φ34.0×61.5mm ER34127S 25Ah φ34.0×127mm

attery high temperature,high temperature lithium thionyl chloride battery,

High capacity:

Stable high operating voltage and high capacitance; High energy density,high stable current

Super high temperature performance:

Wide operating temperature rages(-40℃~+230℃); High temperature adhesive printing

our company's unique special production process original high temperature lithium thionyl chloride battery can work in the environment of 150 ℃.

Long life:

Long-term production inspection and customer use tracking, the life span can reach 10 to 15 years.

Small self-discharge:

Low self-discharge rate (annual self-discharge rate is less than 3%at +25c)

After standing at 50℃ for 1 year, the self-discharge is less than 1%.

Safety

Safety valve design and material selection are exquisite, safe and reliable, and make you worry-free on the explosion risk.

Safety, reliability and performance at high temperatures up to 150 °C.

Consistency:

The quality management system is established in the factory according to the ISO9001 system, and strict quality control is implemented in all production. After strict inspection and matching of capacity, internal resistance, discharge platform, self-discharge, and special temperature treatment, the battery capacity is better than Domestic similar products.

Stainless steel case (low magnetic resistance to environmental erosion)

Excellent environmental application characteristics

APPLICATIONS

In the oil & gas sector, high temperature lithium thionyl chloride battery is suitable for supplying power to logging and monitoring equipment, for example in combination with a generator.

In the field of medical devices, high temperature lithium thionyl chloride battery is suitable for wireless power supply to devices that are hot sterilized. The battery is autoclavable.

In the area of industrial plants, high temperature lithium thionyl chloride battery is suitable, for example, as an energy back-up system for actuators in safety-critical areas where high temperatures occur in the event of a disaster.

The high temperature lithium thionyl chloride battery is also suitable for the monitoring and control of safety-relevant areas or particularly hazardous areas where high ambient temperatures can occur.

such as special instruments and meters for land and offshore oil fields, and meets the technical and safety standards for military applications at home and abroad. Exploration measurement instrument (mills,oil,fields), Date reading instrument, Electronic testing equipment, Sea equipment, Navigation and aviation equipment, Military communcation equipments.

Meter & AMR (Automated Meter Reading), Utility Metering; Medical Electronics, Memory Backup, Tracking Systems; Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices; Remote Monitory Systems, Electronic Toll Tags, Scientific Instruments, Portable Communication Equipment, Military Radio Stations, and other electric powered devices requiring high temperature batteries.

Besides, SER High temperature LiSOCL2 battery have below featurers:

▍A positive structure with proprietary technology

▍Stainless steel-glass airtight package

▍Non-combustible electrolyte

▍High short circuit safety

▍Comply with GB 8897.4-2008 technical requirements

▍Meet technical requirements of IEC60086.4:2014

Company Advantage
With three producing bases, sixteen advanced manufacturing lines, over 1650 staff, we can produce 20000,00 primary cells and 600,000 rechargeable battery packs per month.			Founded in 2004, Guangzhou Ser Battery Technology Co.,Ltd is CE. UL. SGS, IEC and ISO9001 certificated High-tech company.			Customers' interests always goes first,SER has a professional sales team, shipping team and after sales team to provide you with the best solutions and timely service.
Efficient and innovative R & D team helps the company lead in product design and superior performance			While keeping core competitivenes, SER also takes into account relevant social, economic and environmental goals, and always maintains sustained profitability and development capabilities.			For many years, the professional SER team has focused on the lithium battery industry, and has taken every product as a work of art with firmness, steadiness and excellence.
