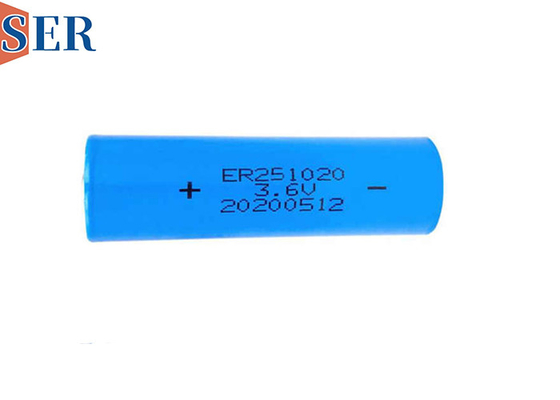

High Temperature CC Size Li SOCL2 Battery ER251020S For MWD / LWD Tools

High Temperature CC Size Li SOCL2 Battery ER251020S For MWD / LWD Tools

High Temperature CC Size Li SOCL2 Battery ER251020S For MWD / LWD Tools
High Temperature CC Size Li SOCL2 Battery ER251020S For MWD / LWD Tools
High Temperature CC Size Li SOCL2 Battery ER251020S For MWD / LWD Tools
Product Details:
Place of Origin: CHINA
Brand Name: SER or OEM
Certification: CE ROSH UN MSDS
Model Number: ER251020S
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: Negotiable
Packaging Details: standard/ customise
Delivery Time: 7 work days
Supply Ability: 100,000pcs per day
Contact Now
Detailed Product Description
Model: High Temperature Battery ER251020S Capacity: 12000mAh
Size: CC Size Voltage: 3.6 Volt
Application2: MWD/LWD TOOLS Shape: Cylindrical
Battery Type: Lithium Thionyl Chloride Battery Type: High Temperature Li/SocL2 Battery
Application: Tracker Certification: CE MSDS,UL CE RoHS
Working Temperature: -40℃--150℃ Warranty: 12 Months
Package: Industrial Package Storage Life: 10 Years
High Light:

CC Size Li SOCL2 Battery

,

High Temperature Li SOCL2 Battery

,

Li SOCL2 Battery For LWD Tools

Li-SOCL2 Batteries  Catalogue(图1)





ER251020s,ER251020S battery,high temperature battery,cc size battery,high temperature battery CC size,LiSOCL2 battery,high temperature lisocl2 battery,high temperature battery ER251020S,MWD battery,LWD TOOLS battery


High Temperature CC Size LiSOCL2 Battery ER251020S For MWD/LWD TOOLS



High temperature Battery ER251020S:







Recommended battery model parameters:


Battery model: High temperature battery ER251020S



Battery brand: SER



Battery performance index



1. Battery capacity: (23±2℃, 100mA/2.0V) 12000mAh



2. Open circuit voltage: ≥3.64V



3. Load voltage: (8Ω, 20±5℃, time ≤10s) ≥3.20V



4. Continuous working currents: (20±5℃) 100mA



5. Large pulse working current: (20±5℃) 200mA



6. Operating temperature range: -55~+150℃



7. Battery storage life: 10 years



High temperature battery ER251020S Advantages





Advantages:

1. High and stable operating voltage

2. Low self-discharge rate (less than 1% per year of storage at +25°C)

3. Wide range of operating temperature

4. Stainless steel container and end caps

5. Hermetic glass-to-metal sealing

6. Non-flammable electrolyte

7. Compliant with IEC86-4 safety standard, UL, CE, UN.



Related products:

ER10450S 0.5Ah φ10.0×45.0mm 3511172_20231102141921697210_0.jpg



ER14250S 0.7Ah φ14.5×25.0mm



ER14335S 1.0Ah φ14.5×33.5mm



ER14505S 1.6Ah φ14.5×50.5mm



ER17335S 1.7Ah φ17.0×33.5mm



ER18505S 2.4Ah φ18.5×50.5mm



ER26500S 4.5Ah φ26.0×50.0mm



ER26102S 10Ah φ26.0×102.0mm



ER34615S 12Ah φ34.0×61.5mm



ER34127S 25Ah φ34.0×127mm





Applications








Main applications:

1. Exploration measurement instrument (mills,oil,fields)

2. Date reading instrument

3. electronic testing equipment

4. sea equipment

5. navigation and aviation equipment

6. Temperature Monitor and communcation equipment








Company Advantage




Li-SOCL2 Batteries  Catalogue(图6)   ER18505M Power type 3.6V A size Primary Lisocl2 Batteries Flat Top Lithium Thionyl Chloride battery(图2)   ER18505M Power type 3.6V A size Primary Lisocl2 Batteries Flat Top Lithium Thionyl Chloride battery(图3)

With three producing bases, sixteen

advanced manufacturing lines, over

1650 staff, we can produce 20000,00

cells and 600,000 rechargeable

battery packs per month.



Founded in 2004, Guangzhou Ser

Battery Technology Co.,Ltd is CE. UL.

SGS, IEC and ISO9001 certificated

High-tech company.



Customers' interests always goes

first,SER has a professional sales

team, shipping team and after

sales team to provide you with

the best solutions and timely service.


ER18505M Power type 3.6V A size Primary Lisocl2 Batteries Flat Top Lithium Thionyl Chloride battery(图4)   ER18505M Power type 3.6V A size Primary Lisocl2 Batteries Flat Top Lithium Thionyl Chloride battery(图5)   ER18505M Power type 3.6V A size Primary Lisocl2 Batteries Flat Top Lithium Thionyl Chloride battery(图6)

Efficient and innovative R & D team

helps the company lead in product

design and superior performance



While keeping core competitivenes,

SER also takes into account relevant

social, economic and environmental

goals, and always maintains sustained

profitability and development capabilities.

  For many years, the professional
SER team has focused on the lithium
battery industry, and has taken every
product as a work of art with firmness,
steadiness and excellence.






Product Advantage

1. Full range of battery categories

17 years of development, SER have
the ability to offer many product
categories:Lisocl2 Battery, LiMNO2
battery, LiPO battery and LiFePO4
batteries.



2. Safety

The perfect protection IC has been used,
undervoltage, short-circuit, overload,
backflow,and we have carried out strict
inspections and external tests, make sure
no quality problems in the hands of
customer.



3. Excellent and stable performance

Strict control for cleanliness in dust-free
workshop from IQC,IPQC to OQC, we
control every step strictly CE, UL, SGS,
FCC,ROHS and ISO9001: 2000 certified.



4. OEM & ODM Ability

Professional engineers have rich
experien ce in OEM& ODM. The
independent labs have many
sophisticated machines and design
softwares always guarantee our OEM
&ODM projects always keep in
high level.



5. Technology

Our dedicated and experienced engineers

team always work together to our customers
from their product design to battery solution
and mass production,Reduce their time cost
and communication cost.



6. Delievry

Fast delivery with standard package,will
bring you a professional experience with
long-term cooperative freight company
and stable routes.



You may also interested in other lithium batteries:





LiSOCL2 battery LiMnO2 batte Ultra thin battery Lipo battery LiFePO4 batteries Portable power station





Have not find a suitable battery for your prototype?

Li-SOCL2 Batteries  Catalogue(图4) Let's talk about what SER experience can do for you!
