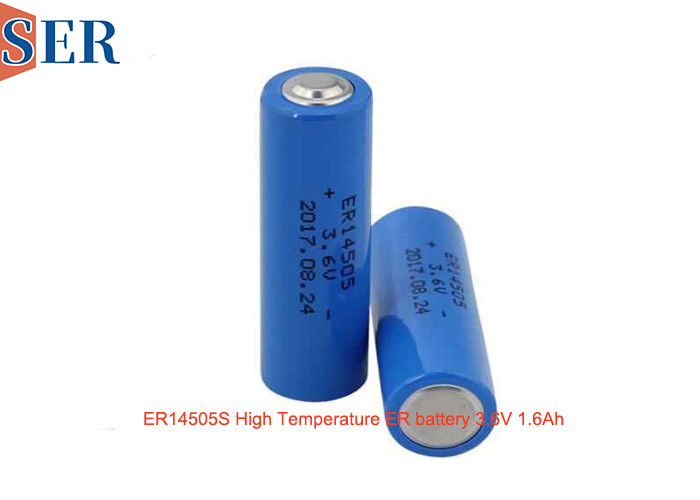

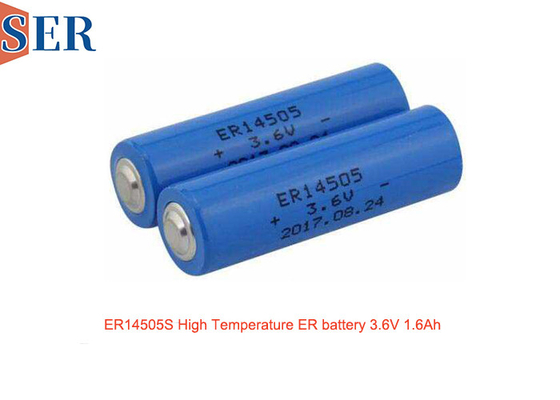

3.6V Primary High-Temperature Lithium Battery ER14505S AA Size LiSOCL2 Battery For Utility Meter

high temperature li-socl2 battery ER17335S utility meter li battery 3.6V primary high-temperature lithium battery Lisocl2 battery pack factory

Battery Features:

Title: high temperature ER battery ER14505S LiSOCL2 battery ER14505S IEC: aa size Nominal Voltage: 3.6 Volt Max.Dimension: 14.5×50.5mm Capacity: 1600mAh Weight: 20g Standard Current: 120 mA Continuous Discharge Current: 250 mA Operating Temperature(c): -30~+150 °C Terminate Voltage: 2.0 Volt Available Terminations: S, T, Solder Tabs; P:Axial Pins Standard Terminations Special Termination are aviable upon request

High temperature ER Battery ER14505S Characteristics

● stable high operating voltage and high capacitance

● high energy density, high stable current

● wide operating temperature rages (-30℃~+150℃)

● low self-discharge rate (annual self-discharge rate is less than 3% at +25℃)

● excellent environmental application characteristics

● stainless steel case (low magnetic resistance to environmental erosion)

APPLICATIONS

High-temperature ER battery is a kind of high-efficiency, long-term continuous working battery, which is widely used in various fields. The main uses are described below:

In the oil & gas sector, high temperature lithium thionyl chloride battery is suitable for supplying power to logging and monitoring equipment, for example in combination with a generator.

Industrial Applications: high-temperature ER battery in the industrial field also has a wide range of applications. They are used in a variety of industrial equipment, such as electronic instruments, power tools, mining equipment and automation equipment. These batteries provide an efficient power supply and ensure the stable operation and performance of the equipment.

Medical applications: high-temperature ER batteries in the medical field also have important applications. They are used in a variety of medical devices such as artificial pacemaker machines, breathing machines, medical diagnostic devices and surgical instruments. These batteries can provide a continuous power supply to ensure the normal operation and performance of medical equipment.

Military Applications: high-temperature ER battery is widely used in military field because of its high energy density, long life and high temperature performance. They are used in a variety of military equipment and weapons systems, such as missiles, uavs, radar and communications systems. These batteries can operate at extreme temperatures and environments, ensuring the reliability and performance of military equipment.

Caution :

● do not short out the battery ● do not charge the battery

● don't pin the batter ● do not squeeze the battery

● do not disassemble the battery ● do not burn batteries

● do not mix old and new batteries ● do not heat the battery to more than 150℃

● do not directly weld the battery ● please use a battery with pre-welded pins or wires.
