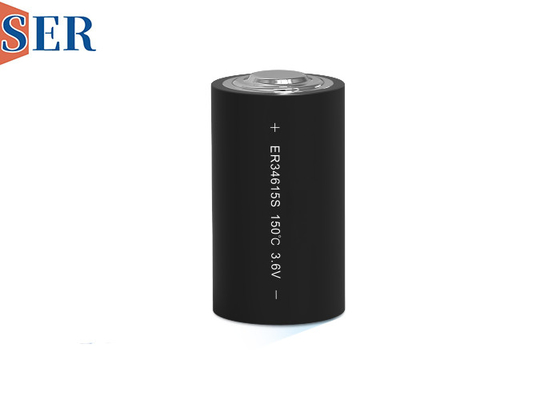

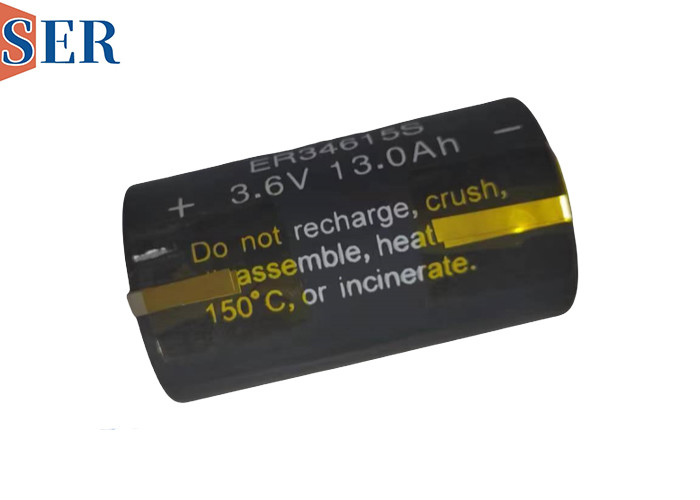

CC Size 3.6V ER34615S Li SOCl2 Battery 13000mAh Ranging From -55 To 165°C

CC Size 3.6V ER34615S Li SOCl2 Battery 13000mAh Ranging From -55 To 165°C

CC Size 3.6V ER34615S Li SOCl2 Battery 13000mAh Ranging From -55 To 165°C
CC Size 3.6V ER34615S Li SOCl2 Battery 13000mAh Ranging From -55 To 165°C
CC Size 3.6V ER34615S Li SOCl2 Battery 13000mAh Ranging From -55 To 165°C
Product Details:
Place of Origin: China
Brand Name: SER
Certification: CE,ROSH
Model Number: ER34615S
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: 3-5USD
Packaging Details: 100pieces/Carton
Delivery Time: 7 days
Payment Terms: TT in advance
Supply Ability: 100000pieces
Contact Now
Detailed Product Description
Weight: 100g Max. Discharge Current: 1200mA
Storage Temperature: -20-35℃ Size: CC
Capacity: 13000mAh Pulse Current: 1500mA
Self-life Rate: 2% Working Temperature: -55-165℃
Application 1: Mine Exploration Equipment Application 2: Pipeline Detection Instruments
Application 3: Alarm And Safety Equipment Application 4: Downhole Oil Measurement Equipment
High Light:

ER34615S Li SOCl2 Battery

,

CC Size Li SOCl2 Battery

,

Li SOCl2 Battery 13000mAh

High TeHigh Temperature Battery CC Size 3.6V Li-SOCl2 ER34615S Battery Ranging From -55 To 165°Cmperature Lithium battery 3.6V Li-SOCl2 ER34615S-150 degree ER34615 SAFT LSH20_150

Li-SOCL2 Batteries  Catalogue(图1)






High temperature Battery ER34615S Features:



Recommended battery model parameters:ER34615S 150.jpg

Battery model: ER34615S LiSOCL2 battery-150°C

Battery brand: SER

Battery performance index

1. Battery capacity: (23±2℃, 50mA/2.0V) 13000mAh

2. Open circuit voltage: ≥3.64V

3. Chemical Composition: Li-SOCl2

4. Continuous working currents: 800mA

5. Large pulse working current: 1200mA

6. Operating temperature range: -55~+165℃

7. Battery storage life: 10 years

(Storange: clean, below +20℃, dry and ventilated.)

8. Shelf Life: 10years (not printed on battery)

Available Terminations S:Standard Terminations Special Termination are aviable upon request T: Solder Tabs P:Axial Pins

Hi-Temperature - ER Li-SOCl₂ Battery



1. Super high temperature performance

Safety valve design and material selection are exquisite, safe and reliable, and make you worry-free on the explosion risk.

Safety, reliability and performance at high temperatures up to 150 °C.

Our company's unique special production process original high temperature lithium thionyl chloride battery can work in the environment of 165 ℃.

2. Small self-discharge:

The self-discharge rate of the high temperature Battery LiSOCL2 primary battery ER26500S is less than 1% at room temperature, and the storage period can reach 10 years in an environment below 35 °C. which will make sure the battery have longer storage life, according to Long-term production inspection and customer use tracking, the life span can reach 10 to 15 years.

3. High capacity



Stable high operating voltage and high capacitance; High energy density,high stable current.

In the field of battery technology, high energy density battery materials can store more energy in a limited volume or mass, thereby increasing the capacity and energy density of the battery.

4. Safety

Safety value design and material selection are exquisite, safe and reliable, and make you worry-free on the explosion risk.

Battery safety is a very important issue, especially for rechargeable batteries. A battery explosion or fire can cause serious personal injury and property damage. Therefore, battery safety has always been a key issue in the field of battery technology. The battery safety issues mainly include: battery short-circuit, over-discharge, battery mechanical damage and use environment.

5. All stainless steel outer body, metal glass sealing structure, non-combustible inorganic electrolyte.






Related products:



Type Nominal capacity Nominal voltage Operating current mA(max) Standard discharge Cut off voltage Dimension (mm) weight
GB
IEC
mAH
V
Continuous
Pulse
Current mA
V
Dia
H
G
1/2AA
600
3.6
100
150
10
2.0
14.5
25.2
10
2/3AA
900
3.6
100
150
50
2.0
14.5
33.2
14
AA
1600
3.6
120
250
20
2.0
14.5
50.5
20
1/2AA
3200
3.6
220
300
100
2.0
18.5
50.5
32
C
5500
3.6
500
1000
4
2.0
26.2
50.5
52
CC
13000
3.6
800
1200
100
2.0
26.2
102.5
102
D
13000
3.6
800
1200
10
2.0
34.5
61.5
100
DD
28000
3.6
1800
2000
100
2.0
34.5
124.5
200
DD
28000
3.6
1800
2000
100
2.0
32.5
127.0
208








Applications




Applications:





1. Petroleum Industry: Down hole high temperate EPG, flow meters, LWD/MWD, and other battery powered down hole

high temperature instruments ( processing and battery packs can be done as required)



2. Automobile industry: TPMS, Diesel engine cylinder monitor and so on.



3. Geothermic industry: High temperature inspection instruments



4. Military uses and other battery-powered devices used in high temperature
