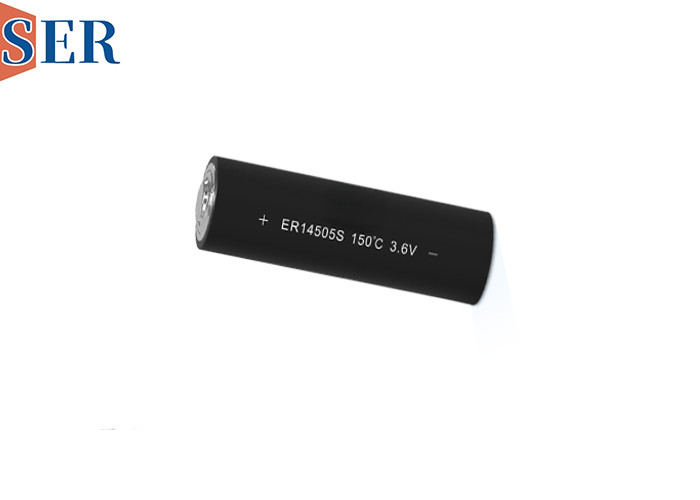

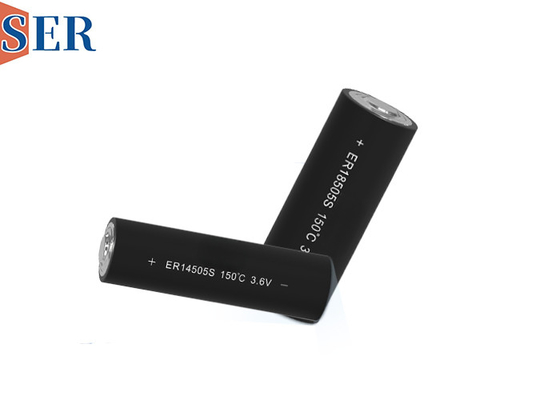

ER14505 3.6V AA Size Primary Li SOCL2 Battery Ranging From -55 To 165°C For Oil Drilling

ER14505 3.6V AA Size Primary Li SOCL2 Battery Ranging From -55 To 165°C For Oil Drilling

ER14505 3.6V AA Size Primary Li SOCL2 Battery Ranging From -55 To 165°C For Oil Drilling
ER14505 3.6V AA Size Primary Li SOCL2 Battery Ranging From -55 To 165°C For Oil Drilling
ER14505 3.6V AA Size Primary Li SOCL2 Battery Ranging From -55 To 165°C For Oil Drilling
Product Details:
Place of Origin: China
Brand Name: SER
Certification: CE,ROSH
Model Number: ER14505S-150℃
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: 3-5USD
Packaging Details: 100pieces/Carton
Delivery Time: 7 days
Payment Terms: TT in advance
Supply Ability: 100000pieces
Contact Now
Detailed Product Description
Weight: 16g Max. Discharge Current: 120mA
Storage Temperature: -20-35℃ Size: 2/3A
Capacity: 1600mAh Pulse Current: 250mA
Self-life Rate: 2% Working Temperature: -55-165℃
Application 1: Mine Exploration Equipment Application 2: Pipeline Detection Instruments
Application 3: Alarm And Safety Equipment Application 4: Downhole Oil Measurement Equipment
High Light:

AA Size Primary Li SOCL2 Battery

,

ER14505 Li SOCL2 Battery

High TeHigh Temperature Type ER14505 3.6V AA Size Primary Ranging From -55 To 165°C For Oil Drillingmperature Type ER14505 3.6V AA size primary Li-SOCl2 Battery

High Temperature Type,Li-SOCl2 Battery ,primary Li-SOCl2 Battery,AA size,AA battery,ER14505,High Temperature AA size

Li-SOCL2 Batteries  Catalogue(图1)






High temperature Battery ER14505S Features:



Recommended battery model parameters:2586122_20231023093625052240_1.jpg

Battery model: ER14505S LiSOCL2 battery-150°C

Battery performance index

1. Battery capacity: (23±2℃, 50mA/2.0V) 1600mAh

2. Open circuit voltage: ≥3.64V

3. Chemical Composition: Li-SOCl2

4. Continuous working currents: 150mA

5. Large pulse working current: 250mA

6. Operating temperature range: -55~+165℃

7. Battery storage life: 10 years

Available Terminations S:Standard Terminations Special Termination are aviable upon request T: Solder Tabs P:Axial Pins

Hi-Temperature - ER Li-SOCl₂ Battery Features



1. Super high temperature performance

Safety valve design and material selection are exquisite, safe and reliable, and make you worry-free on the explosion risk.

Safety, reliability and performance at high temperatures up to 150 °C.

Our company's unique special production process original high temperature lithium thionyl chloride battery can work in the environment of 165 ℃.

2. Small self-discharge:

The self-discharge rate of the high temperature Battery LiSOCL2 primary battery ER14505S is less than 1% at room temperature, and the storage period can reach 10 years in an environment below 35 °C.

3. High capacity



Stable high operating voltage and high capacitance; High energy density,high stable current.

4. Safety

Safety value design and material selection are exquisite, safe and reliable, and make you worry-free on the explosion risk.

Battery safety is a very important issue, especially for rechargeable batteries. A battery explosion or fire can cause serious personal injury and property damage. Therefore, battery safety has always been a key issue in the field of battery technology. The battery safety issues mainly include: battery short-circuit, over-discharge, battery mechanical damage and use environment.

5. All stainless steel outer body, metal glass sealing structure, non-combustible inorganic electrolyte.






Related products:



Type Nominal capacity Nominal voltage Operating current mA(max) Standard discharge Cut off voltage Dimension (mm) weight
GB
IEC
mAH
V
Continuous
Pulse
Current mA
V
Dia
H
G
1/2AA
600
3.6
100
150
10
2.0
14.5
25.2
10
2/3AA
900
3.6
100
150
50
2.0
14.5
33.2
14
AA
1600
3.6
120
250
20
2.0
14.5
50.5
20
1/2AA
3200
3.6
220
300
100
2.0
18.5
50.5
32
C
5500
3.6
500
1000
4
2.0
26.2
50.5
52
CC
13000
3.6
800
1200
100
2.0
26.2
102.5
102
D
13000
3.6
800
1200
10
2.0
34.5
61.5
100
DD
28000
3.6
1800
2000
100
2.0
34.5
124.5
200
DD
28000
3.6
1800
2000
100
2.0
32.5
127.0
208








Applications




Applications:



In the oil & gas sector, high temperature lithium thionyl chloride battery is suitable for supplying power to logging and monitoring equipment, for example in combination with a generator.



In the field of medical devices, high temperature lithium thionyl chloride battery is suitable for wireless power supply to devices that are hot sterilized. The battery is autoclavable.



In the area of industrial plants, high temperature lithium thionyl chloride battery is suitable, for example, as an energy back-up system for actuators in safety-critical areas where high temperatures occur in the event of a disaster.



The high temperature lithium thionyl chloride battery is also suitable for the monitoring and control of safety-relevant areas or particularly hazardous areas where high ambient temperatures can occur.



Why choose us:







SER was founded in 2004, as a leading primary lithium battery manufacturer and solution provider in China, we remain dedicated to leading the R&D and manufacturing of various types of primary lithium batteries.



We have first-class production equipment and high-quality raw materials. Our main products cover a wide range of varieties, such as Li-SOCl2 Cylindrical Batteries, Li-MnO2 Cylindrical Batteries, Lithium Pouch Cell, Ultra Pulse Capacitors.



Support OEM.

If you want a custom size & capacity of li polymer battery, it's also friendly for us.

Our experienced engineers and advanced technology will give you safe, excellent and fast design solution, giving your product a competitive edge over competitors.



What we offer:

1. Strictly quality control

2. First rate service

3. Professional technical advisory

4. Complete production base

5. Continuous supply guarantee



All we do what we want to help you to start your good idea.
