Stable Li SOCl2 Battery 3.6V 28000mAh DD Er341245S For Oil Drilling

Stable Li SOCl2 Battery 3.6V 28000mAh DD Er341245S For Oil Drilling

Stable Li SOCl2 Battery 3.6V 28000mAh DD Er341245S For Oil Drilling
Stable Li SOCl2 Battery 3.6V 28000mAh DD Er341245S For Oil Drilling
Stable Li SOCl2 Battery 3.6V 28000mAh DD Er341245S For Oil Drilling
Product Details:
Place of Origin: China
Brand Name: SER
Certification: CE,ROSH
Model Number: ER341245S-150℃
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: 3-5USD
Packaging Details: 100pieces/Carton
Delivery Time: 7 days
Payment Terms: TT in advance
Supply Ability: 100000pieces
Contact Now
Detailed Product Description
Weight: 200g Max. Discharge Current: 1800mA
Storage Temperature: -20-35℃ Size: 2/3A
Capacity: 28000mAh Pulse Current: 2000mA
Self-life Rate: 2% Working Temperature: -55-165℃
Application 1: Mine Exploration Equipment Application 2: Pipeline Detection Instruments
Application 3: Alarm And Safety Equipment Application 4: Downhole Oil Measurement Equipment
High Light:

Stable Li SOCl2 Battery

,

28000mAh Li SOCl2 Battery

,

Er341245S Li SOCl2 Battery

HighHigh Temperature LiSOCl2 Battery 3.6V 28000mAh DD Er341245S For Oil Drilling temperature LiSOCl2 Battery 3.6V 28000mAh DD er341245S for Oil Drilling

High Temperature Type,Li-SOCl2 Battery,DD battery,AA battery,ER341245,DD size,150°C battery,ser group limited

Li-SOCL2 Batteries  Catalogue(图1)










High temperature Battery ER341245S Features:







Recommended battery model parameters:ER34615S 150.jpg

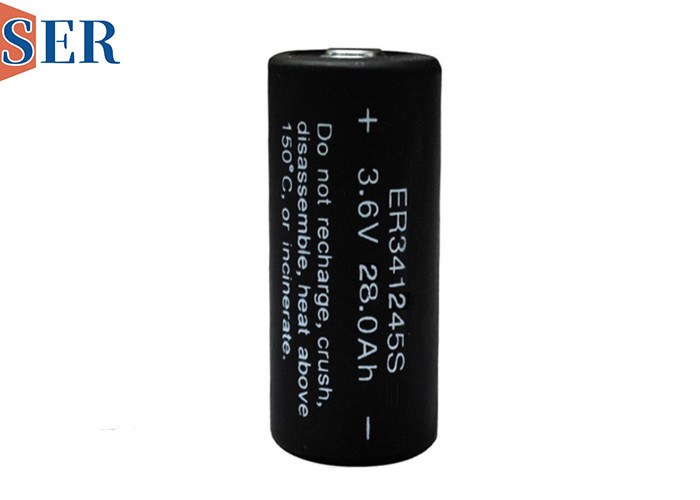

Battery model: ER341245S LiSOCL2 battery

Battery brand: SER

Battery performance index

1. Battery capacity: (23±2℃, 100mA/2.0V) 28000mAh

2. Open circuit voltage: ≥3.64V

3. Chemical Composition: Li-SOCl2

4. Continuous working currents: 1800mA

5. Large pulse working current: 2000mA

6. Operating temperature range: -55~+150℃

7. Battery storage life: 10 years

(Storange: clean, below +20℃, dry and ventilated.)

Available Terminations S:Standard Terminations Special Termination are aviable upon request T: Solder Tabs P:Axial Pins

ER341245S High temperature LiSOCL2 Battery Advantages







1. Super high temperature performance

In the field of energy, the battery with high temperature performance can ensure its normal operation and long service life under high temperature conditions. In order to achieve super high temperature performance, the design and material selection of the product or material need to meet certain requirements. high temperature Battery LiSOCL2 primary battery ER341245S will be work well in the environment of 150 ℃ for a long time.

2. Small self-discharge:

The self-discharge rate of the high temperature Battery LiSOCL2 primary battery ER341245S is less than 1% at room temperature, and the storage period can reach 10 years in an environment below 35 °C. which will make sure the battery have longer storage life, according to Long-term production inspection and customer use tracking, the life span can reach 10 to 15 years.

3. High capacity



Stable high operating voltage and high capacitance; High energy density,high stable current.

In the field of battery technology, high energy density battery materials can store more energy in a limited volume or mass, thereby increasing the capacity and energy density of the battery.

4. Safety

Safety value design and material selection are exquisite, safe and reliable, and make you worry-free on the explosion risk.

Battery safety is a very important issue, especially for rechargeable batteries. A battery explosion or fire can cause serious personal injury and property damage. Therefore, battery safety has always been a key issue in the field of battery technology. The battery safety issues mainly include: battery short-circuit, over-discharge, battery mechanical damage and use environment.

5. All stainless steel outer body, metal glass sealing structure, non-combustible inorganic electrolyte.






Applications




Applications:

1. Petroleum Industry: Down hole high temperate EPG, flow meters, LWD/MWD, and other battery powered down hole

high temperature instruments ( processing and battery packs can be done as required)



2. Automobile industry: TPMS, Diesel engine cylinder monitor and so on.



3. Geothermic industry: High temperature inspection instruments



4. Military uses and other battery-powered devices used in high temperature
