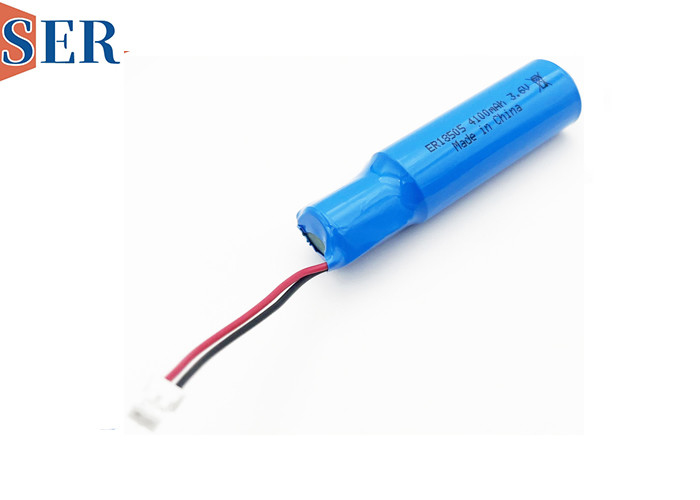

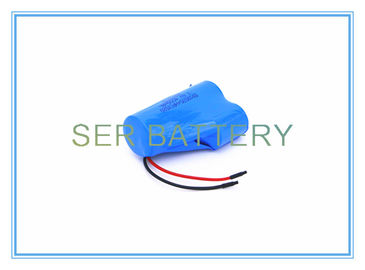

Li-SOCl2 Batteries Energy Type bobbin battery ER18505 with SPC1520 HPC1530 Capacitor for monitor system

Li-SOCl2 Batteries Energy Type bobbin battery ER18505 with SPC1520 HPC1530 Capacitor for monitor system

  • Li-SOCl2 Batteries Energy Type bobbin battery ER18505 with SPC1520 HPC1530 Capacitor for monitor system
  • Li-SOCl2 Batteries Energy Type bobbin battery ER18505 with SPC1520 HPC1530 Capacitor for monitor system
Li-SOCl2 Batteries Energy Type bobbin battery ER18505 with SPC1520 HPC1530 Capacitor for monitor system
Product Details:
Place of Origin: China
Brand Name: SER or OEM
Certification: CE,ROHS,UN38.3,MSDS
Model Number: ER18505 with SPC1520
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 2.5USD App
Packaging Details: 500pcs per carton
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 150000pcs per month
Contact Now
Detailed Product Description
Size: φ20mm X H 72.0mm Nominal Capacity: 4000mAh
Nominal Voltage: 3.6V Application: Electronic Meters (water, Gas,heat), Medical Equipment, Alarms And Security Systems,military Equipment,cash Registers,etc
Shelf Life: Up To 10 Years Terminal Type: Various Options Available
Chemistry: Lithium Thionyl Chloride Type: Spiral Type,Energy Type,Li/SocL2 Battery
Operating Teerature: -55---85 C Degree Package: Standard Package
Model Name: ER18505 With SPC1520 Color: Blue PVC
Self-Discharge Rate: Less Than 1% Per Year

Li-SOCL2 Batteries  Catalogue(图1)

Li-SOCl2 Batteries Energy Type ER18505 with SPC1520 1530 Capacitor

Er18505,Er18505 HPC1520,Er18505 with HPC1520,Er18505 SPC1520,Er18505 with SPC1520,ER18505H Plus SPC1520,ER18505H Plus SPC1520 Capacitor

Battery Features:



Subject Features
Specification ER18505H+SPC1520
Norminal voltage 3.6V
norminal capacity

4000mAh(2mA, 25±3℃, cut off at 2.0V)

Note: The capacity of the battery varies with the discharge current, ambient temperature and termination voltage.

Max. continuous discharge current 500mA (Can provide higher current, consult SER company for details)
Max. available pulse current

2000mA (It varies according to the pulse performance (frequency, duration), temperature, battery condition and the minimum voltage acceptable to the applied equipment)

Pulse current discharge is provided by SPC1520. The main performance of SPC1520 is as follows:



Voltage range 2.5~3.67V
Norminal capacity 140As
Max. Dimensions φ15.1mm x h 21.0mm
Norminal weight About 10g
Max. continuous discharge current 500mA
Max. available pulse current 2000mA



Operating temperature -40~+85℃(When the operating temperature is higher than normal temperature, it may result in a decrease in the capacity at the beginning of the pulse and a low voltage reading)
Standard weight Max. 45g

ER18505 1520.jpg

LiSOCL2 Battery Advantages



1. Low self-discharge rate:

The core of this battery pack lies in its use of lithium-thionyl chloride (Li-SOCl2) chemistry. Li-SOCl2 batteries are known for their high specific energy, which translates into longer operating times for devices powered by them. This chemistry also exhibits a low self-discharge rate, ensuring that the battery retains its charge for extended periods, even when not in use. The Er18505 SPC1520 model, specifically, offers a compact size with a high capacity, making it suitable for use in space-constrained environments.

2. High discharge current, especialy for pulse discharge current:

The addition of the EPC1520 capacitor to this battery pack further enhances its performance. Capacitors are known for their ability to store and release energy quickly, providing a burst of power when needed. By combining the steady power supply of the Li-SOCl2 battery with the instantaneous power delivery of the capacitor, the battery pack is able to meet the demands of high-drain applications while maintaining stable performance.

3. Long storage life, No voltage delay and passivation.

One of the key advantages of the 3.6V Er18505 SPC1520 Primary Li-SOCl2 Battery ER18505H Plus EPC1520 Capacitor Battery Pack is its excellent shelf life. Li-SOCl2 batteries are renowned for their long-term stability, and this particular model is designed to retain its performance for years, even under extreme conditions. This makes it an ideal choice for applications that require reliable power sources that can be stored for long periods without significant degradation.

4. High energy density, high capacity.

Moreover, the battery pack's high energy density allows it to provide a significant amount of power in a relatively small package. This is crucial in applications where space is limited, such as in handheld devices, sensors, and remote monitoring systems. The compact size and lightweight nature of the battery pack also contribute to its ease of use and portability.

5. Safety.

Safety is another crucial aspect of this battery pack. Li-SOCl2 batteries are known for their stability and low risk of leakage or explosion. The Er18505 SPC1520 model incorporates additional safety features to ensure reliable and safe operation. This includes the use of high-quality materials and rigorous manufacturing processes to minimize the risk of defects or failures.





Applications





The 3.6V Er18505 SPC1520 Primary Li-SOCl2 Battery ER18505H Plus SPC1520 Capacitor Battery Pack represents a significant milestone in battery technology. Its combination of high energy density, long shelf life, and excellent low-temperature performance, along with its safety features and environmental friendliness, makes it a standout choice for a wide range of applications. As the demand for reliable and efficient power sources continues to grow, the ER18505H Plus SPC1520 battery pack stands poised to meet these challenges and power the future of electronic devices and systems.

◊ Main Application:







1. Signal lights and the post indicator transferapplications.jpg



2. Intelligent instruments



3. Smoke detector



4. Security device



5. Portable devices



6. Lighting



7. Medical equipment



8. Wireless and other military equipment



9. Water, gas and electricity meters



10. Memory backup power sources



11. Archery tracer nock
