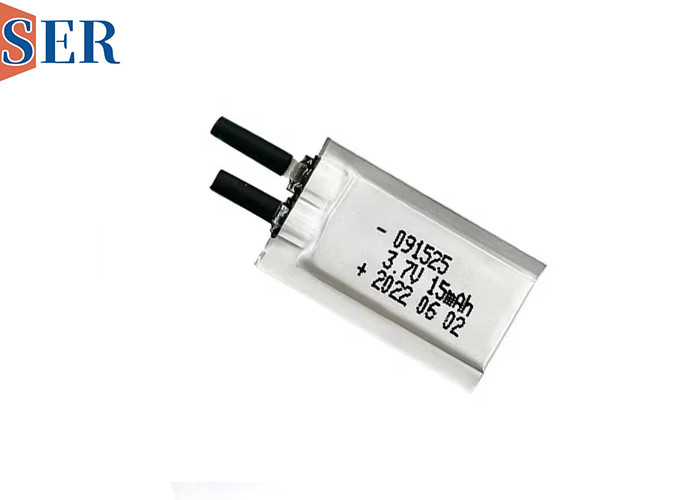

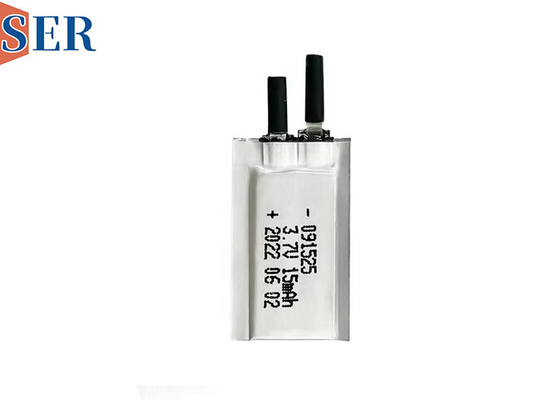

Customize 3.7V ultra thin pouch cell 091525 rechargeable lithium polymer battery for wearable devices

Customize 3.7V ultra thin pouch cell 091525 rechargeable lithium polymer battery for wearable devices

Customize 3.7V ultra thin pouch cell 091525 rechargeable lithium polymer battery for wearable devices
Customize 3.7V ultra thin pouch cell 091525 rechargeable lithium polymer battery for wearable devices
Customize 3.7V ultra thin pouch cell 091525 rechargeable lithium polymer battery for wearable devices
Product Details:
Place of Origin: CHINA
Brand Name: SER
Certification: CE ROSH UN
Model Number: Lipo battery 091525
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: standard/ customise
Delivery Time: 5-8 work days
Supply Ability: 100,000pcs per day
Contact Now
Detailed Product Description
Voltage: 3.7V Capacity: 15mAh
Size: 0.9*15*25mm Application1: RFID Device
Application2: Wearable Products Application4: Tag
Shape: Ultrathin Battery Type: Lithium Ion Polymer Battery
Type: Cryogenic Battery Application: Wearable Products,Medical Devices,IoT And Smart Sensors,Consumer Electronics,Tag,RFID,card
Certification: CE SGS ROSH MSDS,UL CE RoHS FCC Color: Blue,Black Pink Purple Blue PVC
Warranty: More Than 12 Months Package: Industrial Package

Customize 3.7V rechargeable pouch cell for wearable devices, ultra thin lithium polymer battery, ultrathin Lipo battery,ultra-thin Li-polymer battery,091525 15mah Rechargeable Ultra Thin Lithium Polymer Battery

iceLipo battery and Li-ion battery catalogue(图1)



Specification of ultrathin pouch cell 091525 battery:



Specification Parameters Ultrathin Pouch cell 091525 battery
Nominal Voltage 3.7V
Capacity 15mAh @ 0.2C to 3.0 V @ 23° C
Dimension 0.8*15*25mm
Electrical Constant Discharge Current 2mA
Max Discharge Current 8 mA
Physical Terminals/ Connector Nickel Tabs, wire, plug or OEM
Others Working Temperature -20-60℃
Storage Temperature 0~35℃
Protection Functions (PCM) No
High Light Customize Rechargeable Ultrathin pouch cell Lithium Polymer Battery 091525 Lipo Battery Cells Lipo Polymer Batteries





Features of Ultrathin Pouch cell lipo battery / Li-polymer battery:





Understanding the Ultra thin Pouch cell rechargeable Lipo battery for Customization

1. Form Factor and Flexibility

Wearable devices come in various shapes and sizes, from wristbands and smartwatches to AR glasses and health patches. This diversity necessitates batteries that can conform to the device's form factor while maintaining flexibility and durability. Customized pouch cells and lithium polymer batteries offer the flexibility to be molded into various shapes, making them ideal for integration into wearable devices.

2 Energy Density and Capacity

The energy density and capacity of a battery are critical factors in determining the runtime and functionality of a wearable device. Customized batteries can be designed to maximize energy density while maintaining a compact form factor, ensuring that the device can operate for extended periods without frequent recharging.

3 Safety and Reliability

Safety is paramount in wearable devices, as they are often worn close to the body for prolonged periods. Customized batteries can incorporate advanced safety features, such as overcharge protection, short-circuit prevention, and thermal management, to minimize the risk of accidents and ensure reliable performance.



Product Catalogue:





Battery Model
battery Size(T*W*L)
Rated capacity
Cutoff voltage
Discharge Current
014460-180mAh
1*44*60mm
180mAh
2.75V
1C
013040-70mAh
1*30*40mm
70mAh
2.75V
1C
014545-135mAh
1*45*45mm
135mAh
2.75V
1C
015835-170mAh
1*58*35mm
170mAh
2.75V
1C
123030-80mAh
1.2*30*30mm
80mAh
2.75V
1C
012323-30mAh
1*23*23mm
30mAh
2.75V
1C
0160100-550mAh
1*60*100mm
550mAh
2.75V
1C
015362-250mAh
1*53*62mm
250mAh
2.75V
1C
203941-230mAh
2*39*41mm
230mAh
2.75V
1C
015253-180mAh
1*52*53mm
180mAh
2.75V
1C
014348-130mAh
1*43*48mm
130mAh
2.75V
1C
204045-300mAh
2*40*45mm
300mAh
2.75V
1C
153039-110mAh
1.5*30*39mm
110mAh
2.75V
1C
042040-80mAh
0.4*20*40mm
80mAh
2.75V
1C
013945-110mAh
1*39*45mm
110mAh
2.75V
1C
153045-150mAh
1.5*30*45mm
150mAh
2.75V
1C
163050-160mAh
1.6*30*50mm
160mAh
2.75V
1C
135836-120mAh
1.3*58*36mm
120mAh
2.75V
1C
091525-15mAh
0.9*15*25mm
15mAh
2.75V
1C
126070-300mAh
1.2*60*70mm
300mAh
2.75V
1C

1. low-temperature lipo battery,As a professional manufacturer in the lithium battery industry, SER Battery has a variety of lithium polymer batteriess, including

2. high-rate Lipo battery and

3. normal soft-pack Lipo batteries.

4. Ultrathin Lipo battery





If you want a custom size & capacity of li polymer battery, it's also friendly for us.

Our experienced engineers and advanced technology will give you safe, excellent and fast design solution, giving your product a competitive edge over competitors.

All we do what we want to help you to start your good idea.






Applications:

Applications of Ultrathin Batteries

The versatility of ultrathin batteries has opened up a myriad of applications across various industries:

  • Wearable Technology: From fitness trackers to augmented reality glasses, ultrathin batteries power the next generation of wearables, enabling continuous monitoring and interaction without the burden of heavy batteries.

  • Medical Devices: Implantable medical devices, such as pacemakers, benefit from ultrathin batteries' compact size and long cycle life, reducing the need for frequent surgical replacements.

  • IoT and Smart Sensors: The proliferation of IoT devices necessitates power sources that can be seamlessly integrated into small, often disposable, form factors. Ultrathin batteries fit this bill perfectly, enabling smart labels, environmental sensors, and asset tracking systems.

  • Consumer Electronics: Smartphones, tablets, and laptops are continually pushing the boundaries of thinness and portability. Ultrathin batteries contribute to this trend by providing ample power without adding significant weight or thickness.
