Place of Origin: | China |
Brand Name: | SER or OBM |
Certification: | CE, MSDS,UN38.3 |
Model Number: | CP1003742 |
Minimum Order Quantity: | 3000PCS |
---|---|
Price: | 1-12USD/PC |
Packaging Details: | Standard |
Delivery Time: | 10-15days |
Payment Terms: | T/T, L/C |
Supply Ability: | 50000PC/Day |
Model Name: | CP1003742 | Voltage: | 3.0V |
---|---|---|---|
Type: | Li-MnO2 Battery Pouch Cell | Capacity: | 4000mAh |
Work Temperature: | -40℃~+70℃ | Color: | Silver |
Applications: | RFID Reader,Personnel Positioning Card,GPS Tracker,Portable Listening Device,RFID Tag,LoRaWAN Devices, IoT,Animal Identification,Smart Card | OEM/ODM:: | Acceptance |
Highlight: | Li MnO2 Non Rechargeable Lithium Battery,CP1003742 Non Rechargeable Lithium Battery |

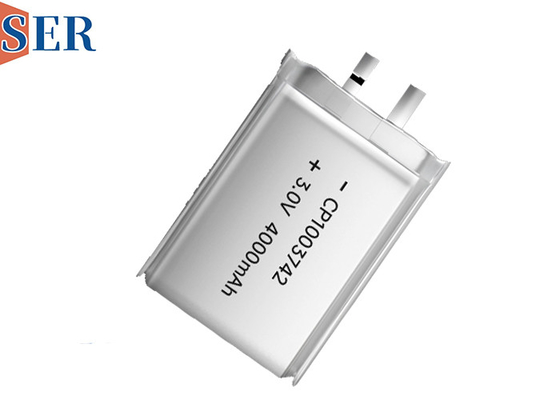

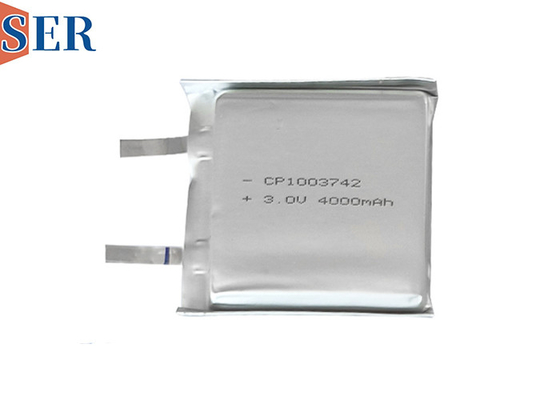

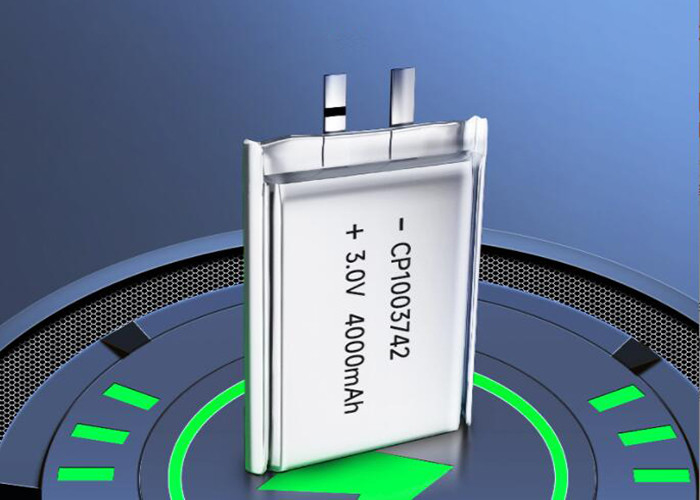

CP1003742 Customized Li-MnO2 Non-rechargeable lithium Battery 3V Soft Pack Primary Battery
Specification of CP1003742 Customize Li-MnO2 battery: |
Specification | Parameters | CP1003742 Customize Li-MnO2 battery |
Nominal | Voltage | 3.0V |
Capacity | 4000mAh @ 0.2C to 2.0 V @ 23° C | |
Dimension | 10*37*42mm | |
Electrical | Constant Discharge Current | 1000mA |
Max Discharge Current | 2000 mA | |
Physical | Terminals/ Connector | Nickel Tabs, wire, plug or OEM |
Others | Working Temperature | -20 ~ +70℃ |
Storage Temperature | 0~25℃ | |
Applications | RFID reader,Personnel positioning card,GPS tracker,Portable listening device,RFID Tag,LoRaWAN devices, IoT,Animal identification,Smart Card | |
Tags | CP1003742,Customized Li-MnO2, Non-rechargeable Battery, 3V Soft Pack Primary Battery,Customized Li-MnO2 battery, Customized Soft Pack Primary Battery,Customized Primary Battery | |
Features of CP1003742 Customize Li-MnO2 battery: |
1. Wide temperature range
High and low temperature resistance, stronger adaptability to the environment,
wide working temperature range, can be better adapted to different environments.
2. More durable power
Large current discharge, large product capacity, high Current. Because of its large surface area,
it has a larger discharge current and a maximum capacity of 4,000 mah,
which makes it more suitable for devices with high capacitance.
3. High Factor of safety do not explode, do not catch fire, and bulge rates are less than 1 in 10,000,
far lower than the same type of battery.
4. Self-discharge rate low
Battery placement for 5 years, remaining power is still more than 60%
5. Support customized battery
To support mass customization, to meet different customer needs, the fastest delivery can be 7 days
Thin Li-MnO2 Battery Model List |
Model Size | Nominal Capacity | Max Continuous Discharge Current | Max Pulse Discharge Current |
CP042529 | 22mAh | 2mA | 4mA |
CP042722 | 15 mAh | 1mA | 2mA |
CP042922 | 15mAh | 1mA | 2mA |
CP044040 | 50mAh | 5mA | 10mA |
CP044560 | 100mAh | 10mA | 20mA |
CP052039 | 25 mAh | 2 mA | 4 mA |
CP052722 | 22mAh | 1mA | 2mA |
CP053050 | 80mAh | 15mA | 30mA |
CP054248 | 100mAh | 20mA | 40mA |
CP064348 | 200mAh | 20mA | 50mA |
CP082922 | 50 mAh | 20mA | 80mA |
CP084248 | 320mAh | 20mA | 50mA |
CP102015 | 30mAh | 2mA | 5mA |
CP104248 | 420mAh | 100mA | 200mA |
CP105050 | 420mAh | 100mA | 200mA |
CP105075 | 450mAh | 200mA | 300mA |
CP105256 | 500mAh | 30mA | 50mA |
CP124444 | 420 mAh | 75 mA | 150mA |
CP142828 | 160mAh | 25mA | 50mA |
CP142828H | 140mAh | 50mA | 100mA |
CP153030 | 170mAh | 40mA | 80mA |
CP153030H | 140mAh | 50mA | 100mA |
CP154580 | 1000mAh | 150mA | 300mA |
CP151015 | 18mAh | 0.5mA | 1mA |
CP161230H | 45mAh | 16mA | 30mA |
CP164548 | 700mAh | 50mA | 100mA |
CP181234 | 125mAh | 25mA | 50mA |
CP183123 | 150mAh | 45mA | 75mA |
CP202540 | 350mAh | 75mA | 150mA |
CP203030 | 230mAh | 50mA | 100mA |
CP203034 | 270 mAh | 50 mA | 100mA |
CP203040 | 210mAh/380MAH | 100mA | 200mA |
CP204517 | 210mAh | 20mA | 50mA |
CP204547 | 750mAh | 50mA | 100mA |
CP222920 | 150mAh | 45mA | 75mA |
CP224248 | 850mAh | 100mA | 200mA |
CP225050 | 1000mAh | 200mA | 400mA |
CP225080 | 1700mAh | 200mA | 400mA |
CP242030 | 230mAh | 50mA | 100mA |
CP255050 | 1200mAh | 150mA | 300mA |
CP251525 | 150mAh | 40mA | 80mA |
CP251626 | 150mAh | 60mA | 150mA |
CP252525 | 250mAh | 30mA | 60mA |
CP255047 | 1250mAh | 150mA | 300mA |
CP255080 | 2050mAh | 300mA | 600mA |
CP302525 | 350mAh | 75 mA | 150 mA |
CP304580 | 2500mAh | 200mA | 500mA |
CP321626 | 250mAh | 50mA | 100mA |
CP334728 | 700mAh | 100mA | 200mA |
CP352440 | 750mAh | 100mA | 300mA |
CP355050 | 2000mAh | 500mA | 1000mA |
CP402020 | 275mAh | 50mA | 100mA |
CP453450 | 1700mAh | 300mA | 600mA |
CP501525 | 350mAh | 80mA | 150mA |
CP502440 | 1200mAh | 150mA | 300mA |
CP503436 | 1550mAh | 200mA | 500mA |
CP503742 | 1700mAh | 300mA | 600mA |
CP505050 | 3000mAh | 500mA | 1500mA |
CP543537 | 1500mAh | 200mA | 400mA |
CP603450 | 2400mAh | 500mA | 1000mA |
CP603956 | 3300mAh | 800mA | 1500mA |
CP702242 | 1500mAh | 200mA | 1200mA |
CP703028 | 1000mAh | 200mA | 400mA |
CP703448 | 2000mAh | 1000mA | 1500mA |
CP806468 | 8000mAh | 2000mA | 4000mA |
CP7839109 | 9000mAh | 2000mA | 3000mA |
CP9V | 1200mAh | 150mA | 300mA |
Battery Production: |
What we offer:
1. Strictly quality control
2. First rate service
3. Professional technical advisory
4. Complete production base
5. Continuous supply guarantee
We have a professional R&D team, we are experienced to customize battery packs according to clients' demands and make most suitable battery solution for them.
We have got our mindset stablished to be the best energy solution provider.
Applications: |
Widely used for :
RFID BATTERY / ID card battery / Payment system battery etc
a. Civilian field: AMR of common instruments and CMOS circuit boards
b. Various smart meters: smart electric meters, water meters, heat meters and gas meters
c. Memories and standby power supplies: memory backup, clock power supplies and data backup power supplies
d. Radio alarm equipment/sensors: smoke alarms and temperature monitors
e. Remote monitoring systems: positioning devices and marine telemetry systems
f. Automotive electronics: tire pressure monitoring systems
g. Industrial field: automation instrumentations and equipment, oil wells, mines, medical equipment, burglar alarm, wireless communication, sea survival, etc.
h. Modern national defense and military fields: aviation, spaceflight, marine electronics, air-sea-land weapons, etc.
We can make Li-MnO2 soft battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC applications.
NO MOQ with fast lead time.
Welcome for any customized.
All we do what we want to help you to start your good idea.
