Place of Origin: | China |
Brand Name: | SER or OBM |
Certification: | CE, MSDS,UN38.3 |
Model Number: | CP355050 |
Minimum Order Quantity: | 3000PCS |
---|---|
Price: | 1-12USD/PC |
Packaging Details: | Standard |
Delivery Time: | 10-15days |
Payment Terms: | T/T, L/C |
Supply Ability: | 50000PC/Day |
Model Name: | CP355050 | Voltage: | 3.0V |
---|---|---|---|
Type: | Li-MnO2 Battery Pouch Cell | Capacity: | 2000mAh |
Work Temperature: | -40℃~+70℃ | Color: | Silver |
Applications: | RFID Reader,Personnel Positioning Card,GPS Tracker,Portable Listening Device,RFID Tag,LoRaWAN Devices, IoT,Animal Identification,Smart Card | OEM/ODM:: | Acceptance |
High Light: | Ultra Thin Battery CP355050,1900mAh Ultra Thin Battery,Ultra Thin Battery Non Rechargeable |

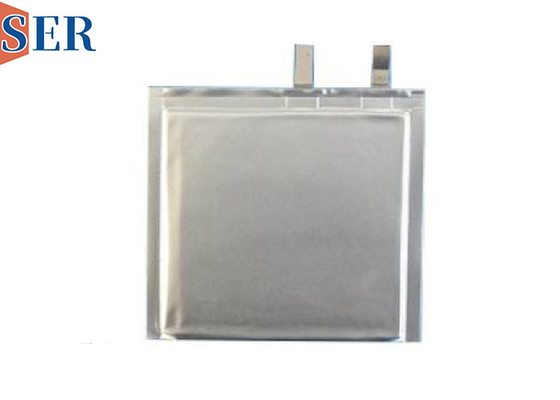

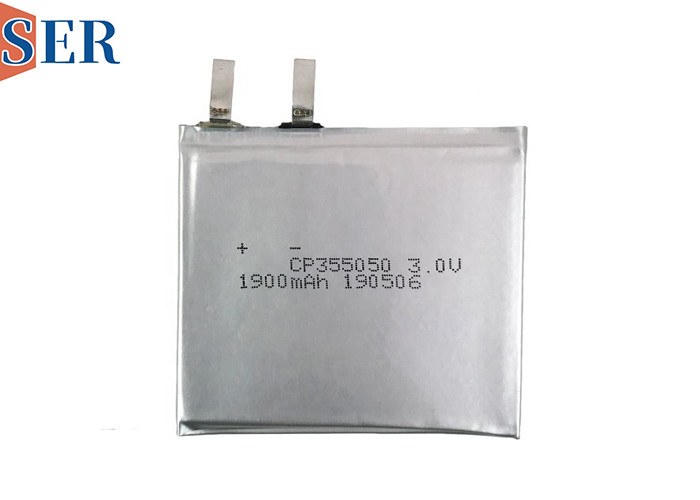

CP355050 Primary soft packing Lithium Manganese Dioxide pouch Battery 3.0V 1900mAh NonRechargeable thin battery for trac
Specification of CP355050 Lithium Manganese Dioxide pouch Battery: |
Specification | Parameters | CP355050 Lithium Manganese Dioxide pouch Battery |
Nominal | Voltage | 3.0V |
Capacity | 2000mAh @ 0.2C to 2.0 V @ 23° C | |
Dimension | 3.5*50*50mm | |
Electrical | Constant Discharge Current | 500mA |
Max Discharge Current | 1000 mA | |
Physical | Terminals/ Connector | Nickel Tabs, wire, plug or OEM |
Others | Working Temperature | -20 ~ +70℃ |
Storage Temperature | 0~25℃ | |
Applications | RFID reader,Personnel positioning card,GPS tracker,Portable listening device,RFID Tag,LoRaWAN devices, IoT,Animal identification,Smart Card | |
Tags | CP355050,CP355050 Battery, Primary soft packing battery, soft packing Lithium Manganese Dioxide Battery,3.0V 1900mAh, NonRechargeable thin battery,tracker device battery,thin battery,pouch Battery 3.0V | |
Features of CP355050 Lithium Manganese Dioxide pouch Battery: |
Characteristics of LiMNO2 flexible packaging battery:
1. Working voltage of 2.5 ~ 3.0 V, one battery can replace two dry batteries
2. Energy density of 450 Wh/kg, under the same weight, the capacity is 50% higher than the steel shell li-ion battery,
3. Wide Operating Temperature Range
It can be used at -40 ~ 70 ° C
4. The self-discharge rate of 4 years is less than 1.5% , with a storage life of up to 10 years After long-time storage, it has good voltage response ability,
5. Flexible Design
It has ultra-thin shape, its thinnest thickness can be up to 0.45 mm, to meet the thin and light shape requirements of modern electronic products;
6. Support customized battery.
Shape size, capacity and load performance can be customized to meet customer needs;
7. Great safety.
It is currently a relatively good safety and reliability of lithium metal batteries.
8. No voltage delay,NO passivation.
CP355050 smart card battery electronic tag battery, With the rise of all kinds of intelligent“Black technology” in the Internet of things, long-life, maintenance-free lithium-ion batteries have also entered the public's field of vision. At present, the mainstream lithium primary battery (also known as non-rechargeable lithium battery) , there are four main forms: cylindrical, square, button-type and ultra-thin soft packaging. The battery is made of aluminum-plastic composite film, and the internal structure is designed to provide good current output for applications with high pulse requirements, while the high capacity also greatly improves the service life of the equipment, in addition, the wide application temperature range (-40 ° C-80 ° C) , the entire life cycle does not need charge maintenance and other advantages, making the flexible packaging battery by the industry customers.
Lithium manganese dioxide battery (limno2 battery) includes cylindrical cell(CR), square cell(CP, softpackage), button(CR) and so on, CP battery is Square lithium manganese Battery with soft package
We have a professional R&D team, we are experienced to customize battery packs according to clients' demands and make most suitable battery solution for them.
We have got our mindset stablished to be the best energy solution provider.
Thin Li-MnO2 Battery Model List |
Model Size | Nominal Capacity | Max Continuous Discharge Current | Max Pulse Discharge Current |
CP042529 | 22mAh | 2mA | 4mA |
CP042722 | 15 mAh | 1mA | 2mA |
CP042922 | 15mAh | 1mA | 2mA |
CP044040 | 50mAh | 5mA | 10mA |
CP044560 | 100mAh | 10mA | 20mA |
CP052039 | 25 mAh | 2 mA | 4 mA |
CP052722 | 22mAh | 1mA | 2mA |
CP053050 | 80mAh | 15mA | 30mA |
CP054248 | 100mAh | 20mA | 40mA |
CP064348 | 200mAh | 20mA | 50mA |
CP082922 | 50 mAh | 20mA | 80mA |
CP084248 | 320mAh | 20mA | 50mA |
CP102015 | 30mAh | 2mA | 5mA |
CP104248 | 420mAh | 100mA | 200mA |
CP105050 | 420mAh | 100mA | 200mA |
CP105075 | 450mAh | 200mA | 300mA |
CP105256 | 500mAh | 30mA | 50mA |
CP124444 | 420 mAh | 75 mA | 150mA |
CP142828 | 160mAh | 25mA | 50mA |
CP142828H | 140mAh | 50mA | 100mA |
CP153030 | 170mAh | 40mA | 80mA |
CP153030H | 140mAh | 50mA | 100mA |
CP154580 | 1000mAh | 150mA | 300mA |
CP151015 | 18mAh | 0.5mA | 1mA |
CP161230H | 45mAh | 16mA | 30mA |
CP164548 | 700mAh | 50mA | 100mA |
CP181234 | 125mAh | 25mA | 50mA |
CP183123 | 150mAh | 45mA | 75mA |
CP202540 | 350mAh | 75mA | 150mA |
CP203030 | 230mAh | 50mA | 100mA |
CP203034 | 270 mAh | 50 mA | 100mA |
CP203040 | 210mAh/380MAH | 100mA | 200mA |
CP204517 | 210mAh | 20mA | 50mA |
CP204547 | 750mAh | 50mA | 100mA |
CP222920 | 150mAh | 45mA | 75mA |
CP224248 | 850mAh | 100mA | 200mA |
CP225050 | 1000mAh | 200mA | 400mA |
CP225080 | 1700mAh | 200mA | 400mA |
CP242030 | 230mAh | 50mA | 100mA |
CP255050 | 1200mAh | 150mA | 300mA |
CP251525 | 150mAh | 40mA | 80mA |
CP251626 | 150mAh | 60mA | 150mA |
CP252525 | 250mAh | 30mA | 60mA |
CP255047 | 1250mAh | 150mA | 300mA |
CP255080 | 2050mAh | 300mA | 600mA |
CP302525 | 350mAh | 75 mA | 150 mA |
CP304580 | 2500mAh | 200mA | 500mA |
CP321626 | 250mAh | 50mA | 100mA |
CP334728 | 700mAh | 100mA | 200mA |
CP352440 | 750mAh | 100mA | 300mA |
CP355050 | 2000mAh | 500mA | 1000mA |
CP402020 | 275mAh | 50mA | 100mA |
CP453450 | 1700mAh | 300mA | 600mA |
CP501525 | 350mAh | 80mA | 150mA |
CP502440 | 1200mAh | 150mA | 300mA |
CP503436 | 1550mAh | 200mA | 500mA |
CP503742 | 1700mAh | 300mA | 600mA |
CP505050 | 3000mAh | 500mA | 1500mA |
CP543537 | 1500mAh | 200mA | 400mA |
CP603450 | 2400mAh | 500mA | 1000mA |
CP603956 | 3300mAh | 800mA | 1500mA |
CP702242 | 1500mAh | 200mA | 1200mA |
CP703028 | 1000mAh | 200mA | 400mA |
CP703448 | 2000mAh | 1000mA | 1500mA |
CP806468 | 8000mAh | 2000mA | 4000mA |
CP7839109 | 9000mAh | 2000mA | 3000mA |
CP9V | 1200mAh | 150mA | 300mA |
Packing:
1. Packing in a tray +inner box+carton box.
2. Single battery packing in PE bag+ inner box+ carton box.
3. Customized package etc.
Shipping method:
1. For samples, usually by express or by air.
2. For orders, by truck, by air ,by express or by sea depends on customer requirement.
Battery Production: |
What we offer:
1. Strictly quality control
2. First rate service
3. Professional technical advisory
4. Complete production base
5. Continuous supply guarantee
Applications: |
Widely used for :
1. Nonstop charging system;
2. Intelligent parking lot ;
3. Container identification;
4. Vehicle charge check;
5. Mine personnel identification;
6. Automated railcar identification management;
7. Automated road charge management;
8. Automated voyage passengers luggage identification transport management;
9. Vehicle entry and exit control;
10.Campus all-purpose card;
11.Repasting card and public transportation card;
12.Associator card, drive license card, and health(medical equipment)card;
13.Animal identification(raising cattle, sheep, pigeon,etc);
14.Automate management of logistic and storage;
15.Automobile remote control lock;
16.Intellectualized door etc.
We can make Li-MnO2 soft battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC applications.
NO MOQ with fast lead time.
Welcome for any customized.
All we do what we want to help you to start your good idea.
